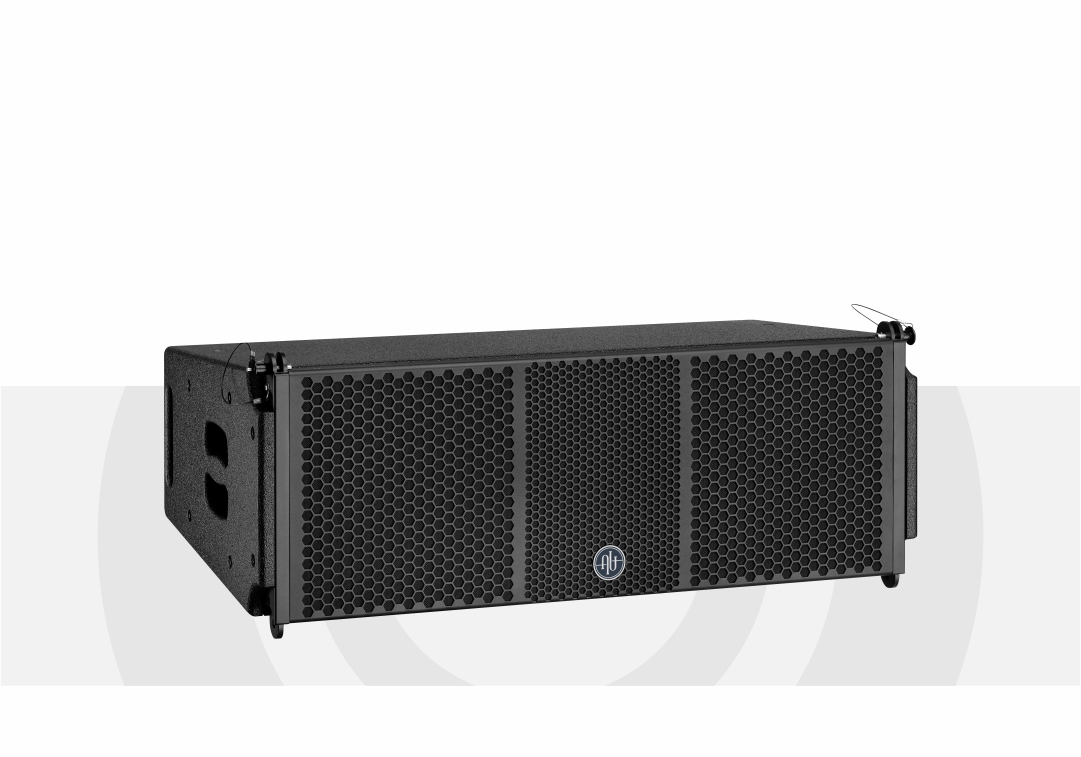

◆ Type: Two divided-frequency dual 12-inch speaker

◆ Driver: * 2 x 12"" Low frequency driver 1 x 3"" Imported Varion high frequency driver

◆ Nominal Impedance: 8Ω

◆ Power Handling: 800W

◆ Frequency Range(-10 dB): 55 Hz -20 kHz

◆ Dispersion: (-6 dB) H x V90° x 10°

◆ Sensitivity: 103dB

◆ Maximum SPL: 132dB/peak138dB

◆ Connection: 2x Speakon NL4

◆ N.W: 35KG"

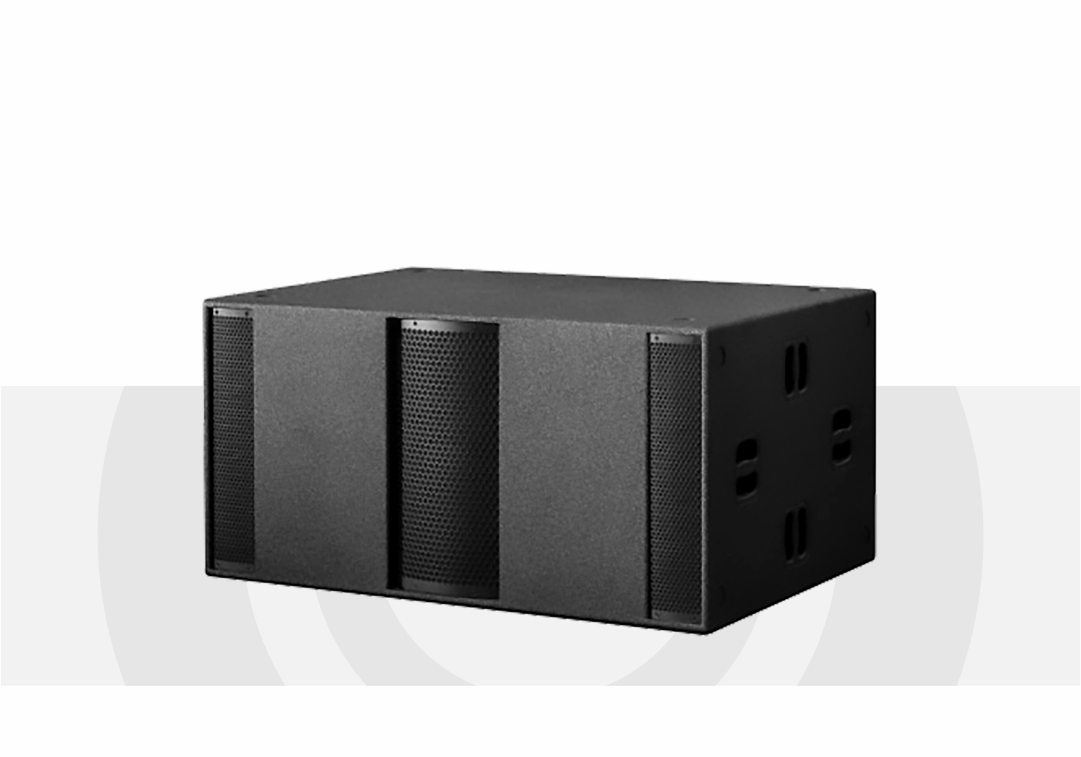

◆ Frequency response: 30Hz-150Hz(±3dB) 1watt@1m

◆ Sensitivity: 118dB /W(lm)

◆ Maximum sound pressure level: 146dB MAX

◆ Impedance: 8Ω

◆ Rated power: 1300W Nominal

◆ System recommended power: 1500W Continuous

◆ Peak power: 4000W Peak

◆ System Type: Single 18-inch subwoofer (used with K-2)

◆ Bass unit: 18 "neodymium magnetic bass ×1

◆ Hanging hardware: special pendant for line array

◆ Material: High strength birch plywood

◆ Surface treatment: high strength waterborne paint

◆ Color: Red and black

◆ Box size: 740H×540W×710D (unit: mm)

◆ Net weight: 50.5kg/ piece

◆ Impedance: 8Ω

◆ Frequency response: 55Hz-18.5kHz

◆ Input sensitivity: 103dB/W/m

◆ Diffusion Angle: 90°H x 90°V

◆ Construction: 15"" (190 magnetic 75 core) +1.7"" Horn (44 core) coaxial unit with magnet

◆ Average power: 450W

◆ Frontal power: 1800W

◆ Size: mm(W 520 D 350 H 560)

◆ Maximum sound pressure level :133dB

◆ Weight: 20kg

◆ Gross weight: 22kg

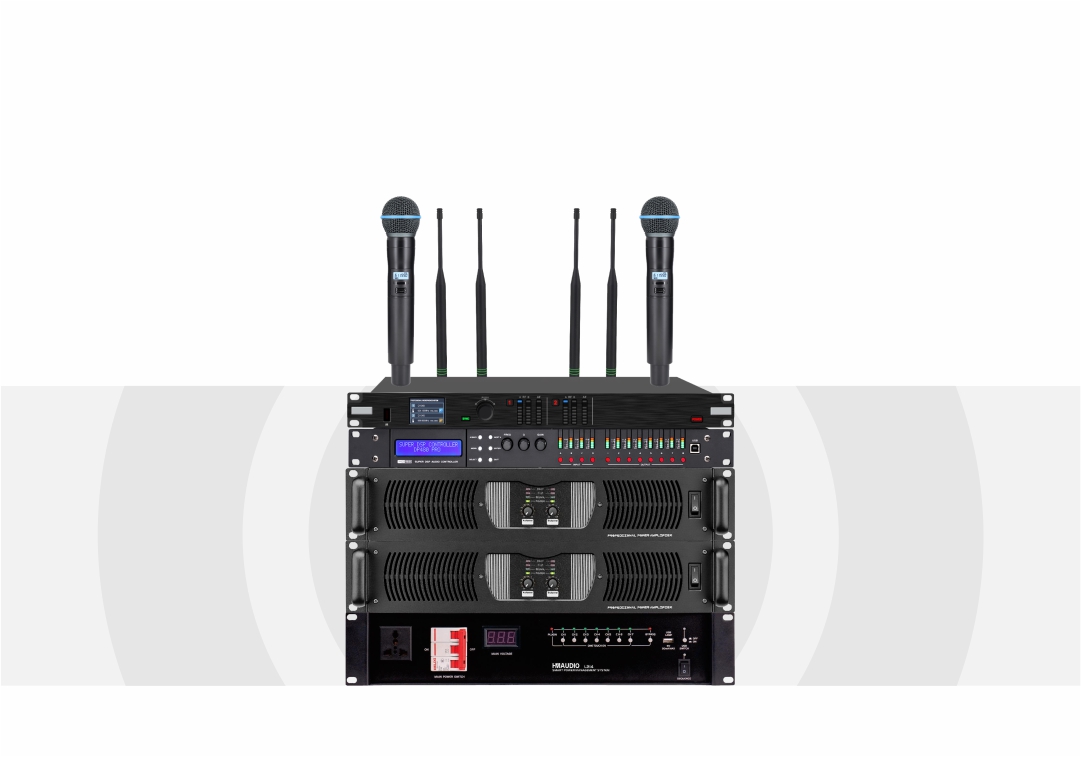

◆ Output power (20-20KHZ/THD≤1% stereo/parallel 8 OHM * 2:1300W *2; 4 Euro 2250W*2; Bridge 8 Euro 3600W.

◆ Connector: XLR balance interface.

◆ Input sensitivity: 0.775V/1V/1.44V

◆ Input impedance: 10K unbalanced, 20K balanced.

◆ The frequency is 20-20KHZ/±1db under the corresponding 10W power

◆ THD(1/4 power) ≤0.01%

◆ Signal-to-noise ratio (A weight) : ≥97db

◆ Damping coefficient (1KHZ):≥ 900@8 Ohms(10W power output test)

◆ Separation degree (1KHZ):≥85db.

◆ Protection mode: over current protection, DC protection, short circuit protection, limiting protection.

◆ Indicator light: Power, protection, distortion.

◆ Cooling mode, temperature control fan stepless speed change.

◆ Power supply: AC 220V:50HZ.

◆ Maximum power consumption 2600W.

◆ Size: (L*W*H)482*470*88.16. Weight 14KG

◆ Stereo power: 8Ω1800W*2,THD:0.01%1/8

◆ Power 1KHz,4Ω2700W*2,

◆ Bridge power :4600W,

◆ SNR: 108dB,

◆ Conversion rate: 80V/us,

◆ Damping coefficient: 550:1,

◆ Frequency response: 20Hz-20KHz(±0.3dB),

◆ Input sensitivity: 0.775V/1V/1.55V,

◆ Input impedance: 10K ohms-20K ohms,

◆ The panel light: Signal, dctive, clip/limiting,

◆ Power supply: 220V,50/60z,

◆ Maximum power consumption: 6200W,

◆ Net weight: 26.5kg

◆ Size: (D)450mm*(W)483mm*(H)88mm

◆ 96KHz sampling frequency, 32-bit DSP processor, 24-bit A/D and D/A conversion;

◆ USB, RS232 interface, network port and WIFI can be connected to the computer; Through PC control software to control, are very convenient and simple;

◆ Each input and output are provided with 8 independent parameter equalization, adjusting the gain range up to ±20dB;

◆ At the same time, the output channel balance can also choose Lo-shelf, Hi-shelf two skew wave mode;

◆ Each mode has delay, polarity and mute Settings, the longest delay up to 1000ms;

◆ Output channel, can also control the gain, voltage limit and input channel signal selection function;

◆ Variable high/low pass filter, and the response can be selected as Bessel, Butterworth 12dB,18dB,24dB or Linkwitz-Riley 12dB,18dB,24dB,48dB

◆ 25 synchronous phase consistent mixing busbars

◆ 8 DCA groups and 6 mute groups

◆ 8 stereo effects and up to 50 different effects types

◆ 1 stereo AES/EBU output

◆ 1 Input and output to MIDI

◆ 36 user-defined keys

◆ 25 100mm MIDAS PRO electric faders

◆ 7 "TFT color" Daylight "display

◆ Support for Behringer's personal monitoring system P16

◆ Support for U disk recording and playback in FAT32 format (up to 2 tracks at 44.1kHz sampling rate)

◆ Support DAW post-production routing control

◆ Built-in RTA function

◆ Support 32x32 channels of digital audio transmission via USB 2.0

◆ Rf modulation mode: broadband frequency modulation

◆ Frequency range: 626--662 740--776 780--820 MHz

◆ Frequency adjustment: 1600 receiving frequencies can be tuned in 25KHz steps

◆ Replaceable pickup head with shure interface

◆ Working bandwidth: 40MHz

◆ Phantom power output: 10V

◆ Control tone silence: pilot control tone

◆ Communication encryption: 128-bit encoding encryption

◆ Rf Power output: 30mW (Max)

◆ Battery requirements: 2 3V AA batteries

◆ Input cut-off point: +22dBm

◆ Noise ratio: 4.0dB Type(Center Band)

◆ Gain: +6-9dB(Center Band)

◆ Output impedance: 15dB min

◆ Impedance: 50Ω pointing

◆ Bandwidth: 300MHz

◆ Socket: BNC

◆ Power supply: 100-240V/50/60Hz

◆ Power consumption: 170mA

◆ Operating frequency range :490-960MHz;

◆ Power supply mode: BNC,5-10VDC;

◆ Antenna type: logarithmic cycle;

◆ Input impedance: 50 ohms;

◆ Gain: 12dB;

◆ Directivity: horizontal 90°;

◆ Connector type: BNC;

◆ Input power supply three-phase five wire, AC 380 50Hz

◆ power switch and overcurrent protection 32A 3P air switch, with overcurrent and short circuit protection

Number of channels The front panel has 1 direct channel

◆ the rear panel 14 way controllable (upper and lower two sockets for a group, a total of 7 groups, each channel control 1 group at the same time switch)

◆ each action delay time 1 second

◆ Maximum output current of a single circuit The total current of the device connected to the upper and lower two sockets of a single group is limited to 30A 60 seconds or 16Arms

◆ the maximum input current 80A

◆ with power filter none, 7 16A special filter

◆ package size 557*462*145 mm (mm)
