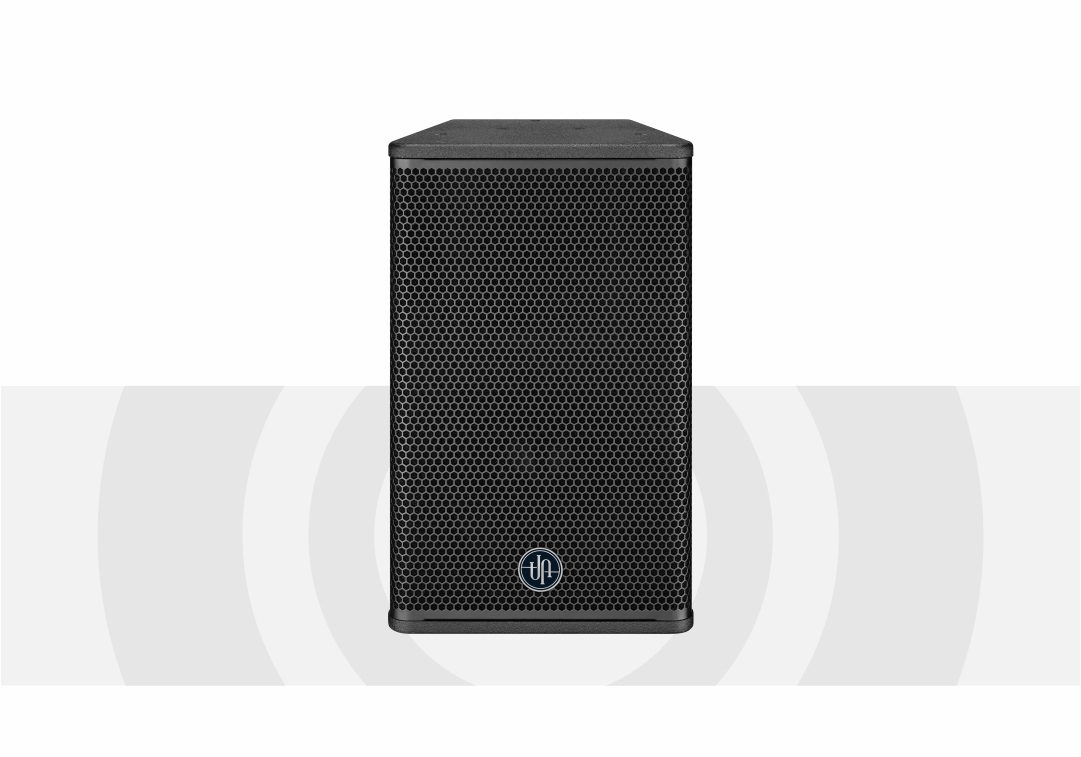

◆ Bass 1×12 "190 magnetic 75 core space magnetic, high neodymium magnetic imported materials,

◆ Frequency range 47HZ-18KHZ,

◆ Sensitivity 97.5dB,

◆ Maximum noise pressure level 125dB,

◆ Rated power 435W,

◆ Covering Angle 100° x 70° can be rotated.

◆ Weight 16.5kg,

◆ Box material: birch, polyurea paint finish.

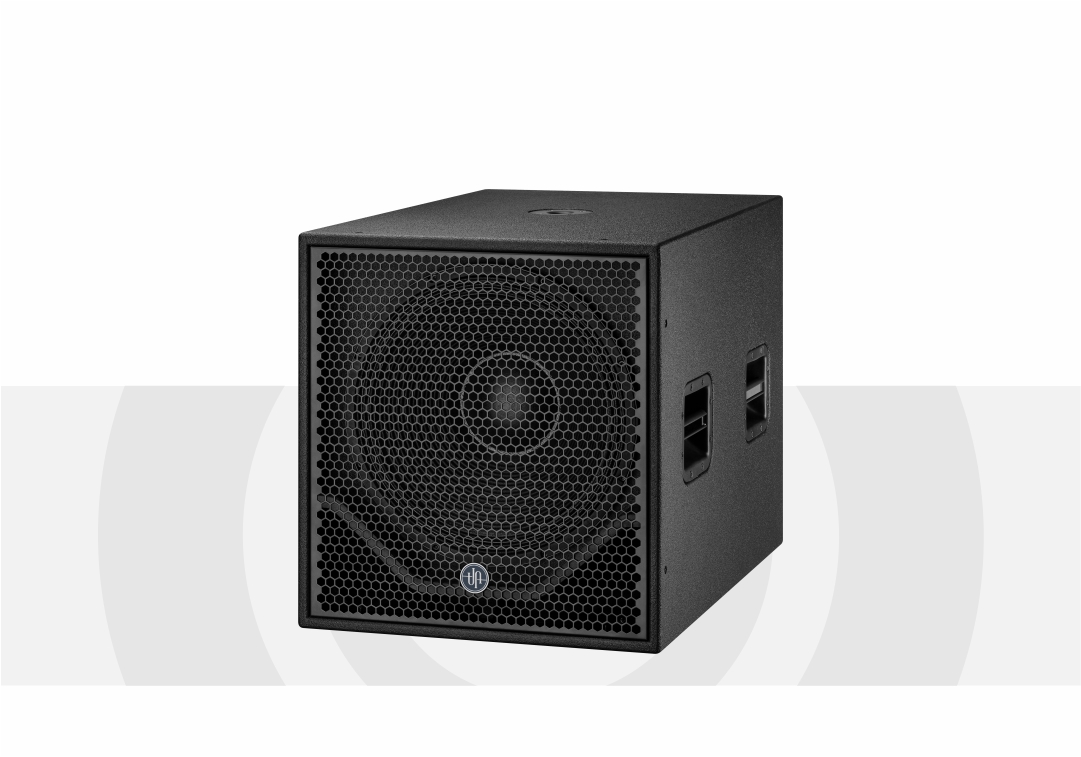

◆ Composition: 18""Long excursion driver

◆ Frequency range: 30HZ-200Hz

◆ Rated power :1000W (continuous)

◆ Impedance: 8Ω

◆ Maximum sound pressure level: 127dB

◆ Sensitivity :102dB

◆ Net weight: 48Kg Gross weight: 52Kg

◆ Size: mm(W 570 W 780 H 840)

◆ Labyrinth type strong airflow guidance technology.

◆ Low loss divider design.

◆ Newly designed subwoofer unit.

◆ Heat diversion technology.

◆ Internal air flow optimization design

◆ Impedance: 8Ω

◆ Frequency response: 65Hz-18.5KHz

◆ Sensitivity: 102dB/W/m

◆ Diffusion Angle: 90°H x 90°V

◆ Construction: 12"" (190 magnetic 75 core) +1.7"" Horn (44 core) coaxial unit with magnet

◆ Average power: 400W

◆ Frontal power: 1600W

◆ Size: mm(width 460 depth 300 height 460)

◆ Maximum sound pressure level :132dB

◆ Weight: 17kg

◆ Gross weight :19kg

◆ Output power (20Hz-20KHz/THD≤ 1%) :

Stereo/Parallel 8Ω× 2:850W ×2;

Stereo/Parallel 4Ω× 2:1200W ×2;

◆ Connecting seat: XLR input, terminal and four-core cannon output

◆ Voltage gain (@1KHz) : 37dB

◆ Input sensitivity: 0.775V/1.44V

◆ Input impedance: 10KΩ unbalanced, 20KΩ balanced

◆ Frequency response (at @1W power) : 20Hz-20KHz/+0/-2dB

◆ THD+N(at @1/8 power) : ≤ 0.05%

◆ Signal-to-noise ratio (A weight) : ≥100dB

◆ Damping coefficient (@1KHz) : ≥ 300@8 ohms

◆ Separation degree (@1KHz) : ≥80dB

◆ Protection mode: over current protection, DC protection, short circuit protection

◆ Indicator light: Power, protection, distortion

◆ Cooling method: fan cooling

◆ Power supply: ~ 220V; 50Hz

◆ Stereo power: 8Ω1000W*2,THD:0.05%1/8

◆ Power 1KHz,4Ω1500W*2, 8ω

◆ Bridge power :3000W,

◆ SNR: 105dB,

◆ Conversion rate: 80V/us,

◆ Damping coefficient: 550:1,

◆ Frequency response: 20Hz-20KHz(±0.3dB),

◆ Input sensitivity: 0.775V,

◆ Input impedance: 10K ohms-20K ohms,

◆ The panel light: Signal, dctive, clip/limiting,

◆ Power supply: 220V,50/60z,

◆ Maximum power consumption: 4200W,

◆ Net weight: 20.5kg.

◆ Size: (D)450mm*(W)483mm*(H)88mm

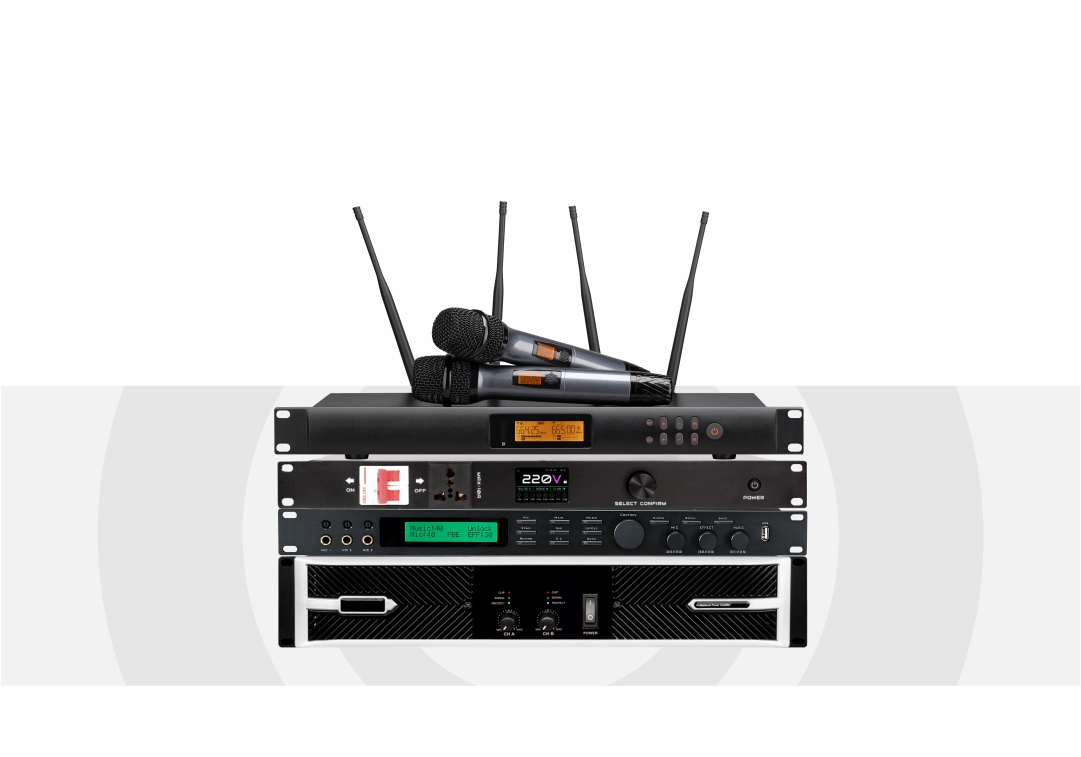

True diversity one drags two wireless

Hand microphone.

◆ Built-in frequency automatic scanning function, scan results can be viewed on the LCD screen, you can work in

◆ State to quickly search and lock undisturbed frequencies

◆ Although the anti-interference ability of super bow, it can effectively suppress the noise interference and the same frequency interference brought by the outside

◆ Provide 2 antenna channels (BNC interface), 2 balanced independent audio output (XLR interface), 1 unbalanced mixed audio output (Ø6.35mm interface)

◆ UHF600-699MHz frequency band carrier, PLL phase-locked loop loop design, true diversity superheterodyne secondary frequency conversion

◆ The host adopts pure automatic signal selection (true diversity) receiving design, which not only has a long receiving distance, but also can eliminate receiving stutter

◆ Karaoke effect device with speaker processor function, each part of the function is independently adjustable; 24Bit data bus and 32Bit DSP;

◆ The MUSIC input channel is provided with 7 sections of parametric equalization;

◆ The MIC input channel is provided with 15 sections of parametric equalization; A/B MIC parameters can be adjusted independently

◆ the main output with 5 sections of parametric balance;

◆ the middle output and subwoofer are provided with 3-stage parametric balance;

◆ the microphone has three feedback mechanisms;

◆ maximum input level: 4V(RMS)

◆ maximum output level: 4V(RMS)

◆ Music channel gain: MAX:12DB

◆ microphone sensitivity: 64MV(OUT :4V)

◆ signal to noise ratio: >80DB

◆ Input voltage: 220V~50HZ"

◆ Support two groups of local cycle switch control.

◆ Built-in power meter, voltage, current, power, power factor real-time display.

◆ Protection thresholds can be set with overvoltage protection, overcurrent protection and undervoltage protection.

◆ Support RS232 central control, baud rate can be set (4800-921600, default 9600), support all data code of the device.

◆ Support the cascade of multiple devices, through RS232 connection (maximum distance of 10 meters), RS232 connection line needs db9 male to male 23 cross.

◆ Power off memory (when the device suddenly power off data is automatically stored).

◆ Power-on self-start (when the device is set to turn on the power-on self-start, all device channels will be opened after 10 seconds of each device power).

◆ 8 switching channels output, each can be set separately

◆Switching delay 1-999 seconds (default 1 second)
