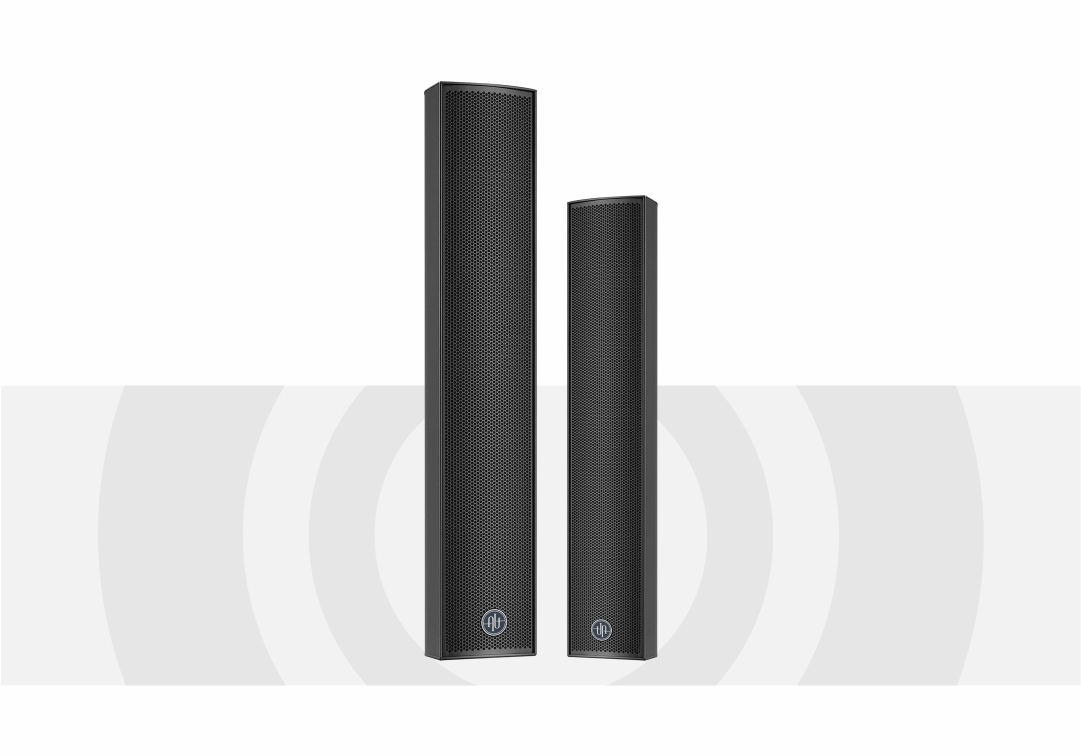

◆ Unit :6 x 4""

◆ Rated power :450W

◆ Max power :900W

◆ Sensitivity :99dB

◆ Maximum/peak sound pressure level :128.5dB / 131.5dB

◆ Frequency response: 65Hz-20kHz

◆ Impedance :5.3Ω / 10.6Ω

◆ Vertical directivity (1KHz-16KHz):14°(7°/ -7°)

◆ Vertical directivity (1KHz-4KHz):30°(15°/ -15°)

◆ Horizontal directivity (1KHz-16KHz):80°(40°/ -40°)

◆ Horizontal directivity (1KHz-4KHz):120°(60°/ -60°)

◆ Driver: Aluminum basin stand/ferrite

◆ Box material: multilayer plywood

◆ Box type: inverted phase box

◆ Socket :2 x 4-pin Speakon

◆ Hoisting nut hole :14 x M8

◆ Dimensions :150 x 170 x670mm

◆ Weight :10.5KG"

◆ Stereo power: 8Ω850W*2,THD:0.05%1/8

◆ Power 1KHz,4Ω1275W*2, 8ω

◆ Bridge power :2550W,

◆ SNR: 105dB,

◆ Conversion rate: 60V/us,

◆ Damping coefficient: 550:1,

◆ Frequency response: 20Hz-20KHz(±0.3dB),

◆ Input sensitivity: 0.775V,

◆ Input impedance: 10K ohms-20K ohms,

◆ The panel light: Signal, dctive, clip/limiting,

◆ Power supply: 220V,50/60z,

◆ Maximum power consumption: 3500W,

◆ Net weight: 18.5kg.

◆ Size: (D)450mm*(W)483mm*(H)88mm

◆ Perfect solution for anti-whistling in the conference system;

◆ 2 inch TFT color screen, English and Chinese optional;

◆ Feedback plus frequency shift design scheme, frequency shift 4 optional;

◆ Each channel is equipped with 12 traps, working frequency 20-20KHZ, automatic scanning and suppression of whistling points;

◆ Unique noise gate function can suppress the weak noise interference of the system;

◆ Input compression function, eliminate feedback and expand voice dynamics;

◆ Response time fast, medium and slow 3 speed can be fixed, more humanized;

◆ Equipped with professional PC debugging software, USB free driver plug and play, convenient and fast;

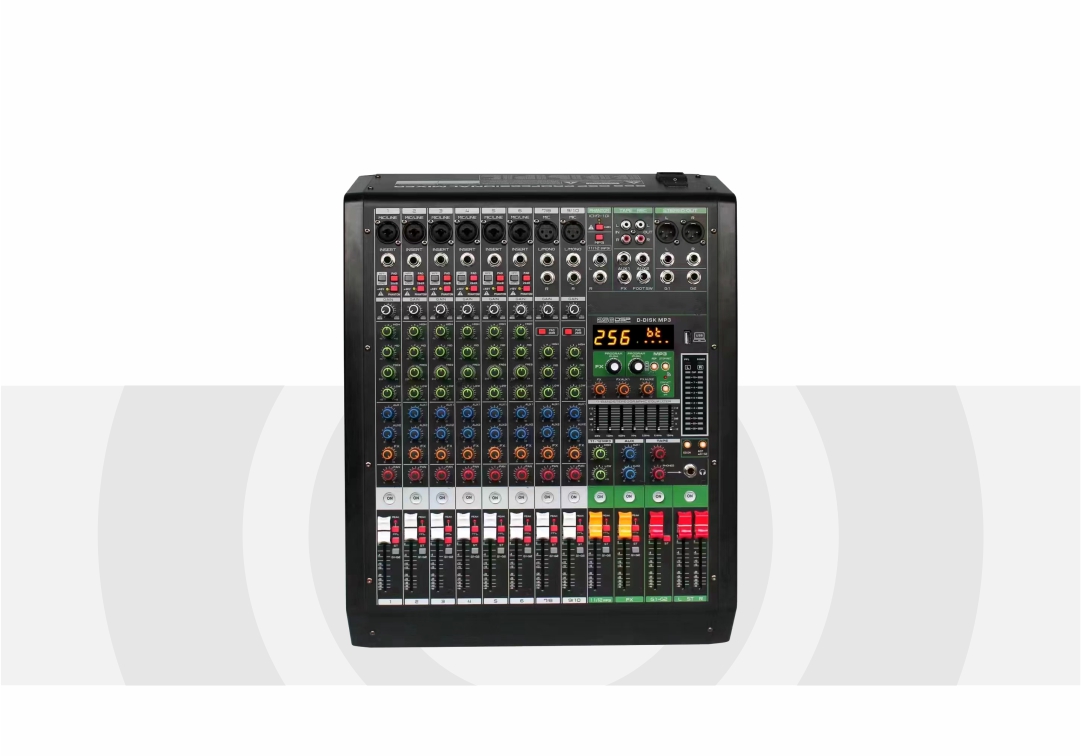

◆ 4/8/12 standard input

◆ Road balance Mic/Line input, allow to lose from Cannon or 6.35JK

◆ Enter wide input level range of microphone and line signals

◆ Each mono channel has a peak indication

◆ All input channels have a three-channel balance

◆ All input channels use 60mm stroke push-pull attenuator

◆ 2 stereo line input with +4/-10dB input sensitivity selection

◆ Set the channel on-off switch for each channel

◆ Set the listening switch for each channel

◆ 1 stereo auxiliary inputs,2 auxiliary outputs

◆ Built-in DSP effector provides 16 kinds of DSP effects

◆ +48V phantom power supply

◆ 96KHz sampling frequency, 32-bit DSP processor, 24-bit A/D and D/A conversion;

◆ USB, RS232 interface, network port and WIFI can be connected to the computer; Through PC control software to control, are very convenient and simple;

◆ Each input and output are provided with 8 independent parameter equalization, adjusting the gain range up to ±20dB;

◆ At the same time, the output channel balance can also choose Lo-shelf, Hi-shelf two skew wave mode;

◆ Each mode has delay, polarity and mute Settings, the longest delay up to 1000ms;

◆ Output channel, can also control the gain, voltage limit and input channel signal selection function;

◆ Variable high/low pass filter, and the response can be selected as Bessel, Butterworth 12dB,18dB,24dB or Linkwitz-Riley 12dB,18dB,24dB,48dB;

◆ Can store 12 groups of user programs

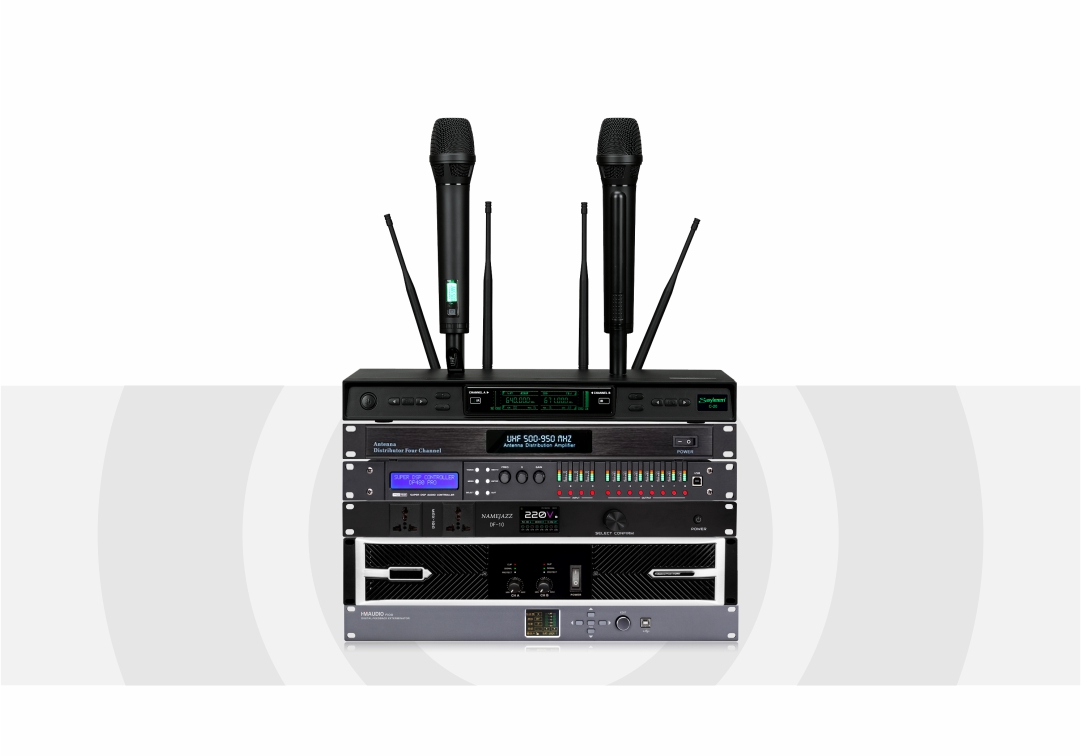

◆ Diversity receiver for optimal reception

◆ Wireless synchronization of the transmitter is realized by infrared frequency matching and manual frequency modulation

◆ Wireless receiving distance is adjustable,

◆ Frequency lockable control function button

◆ Unique intelligent ID identification technology to achieve multiple sets of simultaneous distribution

◆ With balanced and unbalanced audio output, easy to connect with various audio equipment

◆ The transmitter is powered by two 1.5V batteries for long battery life and easier maintenance

◆ The transmitter uses 50MHz bandwidth, which is convenient for interchanging frequency segments, especially during performances

◆ The transmitter is made of high-strength alloy material and durable

◆ Easy to read illuminated LCD display

◆ Technical parameters of eight-way signal amplifier: (standard aviation case)

◆ Frequency range: 500-940MHz

◆ Input cut-off point: +22dBm

◆ Noise ratio: 4.0dB Type(Center Band)

◆ Gain: +6-9dB(Center Band)

◆ Output impedance: 15dB min

◆ Impedance: 50Ω

◆ Bandwidth: 300MHz

◆ Socket: TNC female

◆ Power supply: 100-240V/50/60Hz

◆ Power consumption: 170mA

◆ Rated output voltage: AC 220V,50Hz

◆ Rated output current: 30A

◆ Controllable power supply: 8 channels

◆ Each action delay time: 1 second

◆ Power supply: AC/220V 50/60Hz 25A

◆ Each output with light/digital tube display

◆ Single rated output power supply: 30A up to 3000W"
