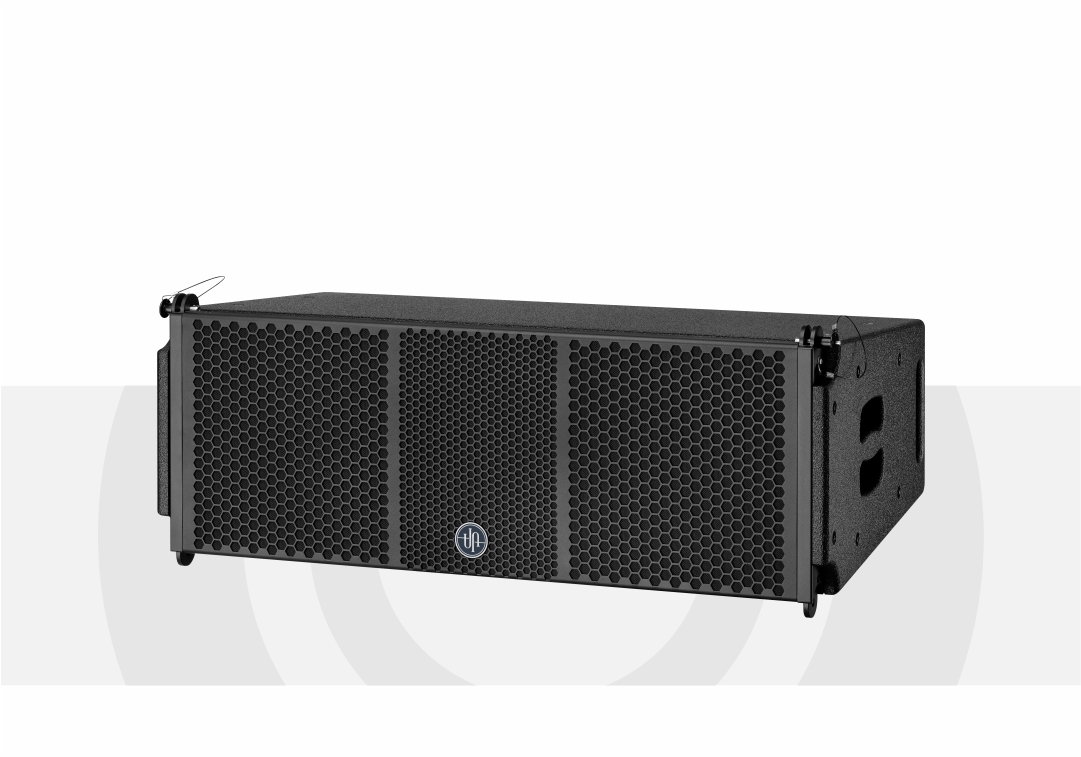

◆ Type: Two divided-frequency dual 8-inch speaker

◆ The unit consists of the Driver: 2 x 8" low frequency driver 1x 3" high frequency driver

◆ Nominal Impedance: 8Ω

◆ Rated Power Handling: 500W

◆ Frequency response Frequency Range (+/-3 dB): 65Hz-20kHz

◆ The radiation Angle Dispersion(-6 dB): H x V 90° x 10°

◆ Sensitivity: 101dB

◆ Maximum SPL: 128dB/ Peak: 134dB

◆ Connection: 2x Speakon NL4

◆ Speaker size (WxDxH): 772X474X288MM

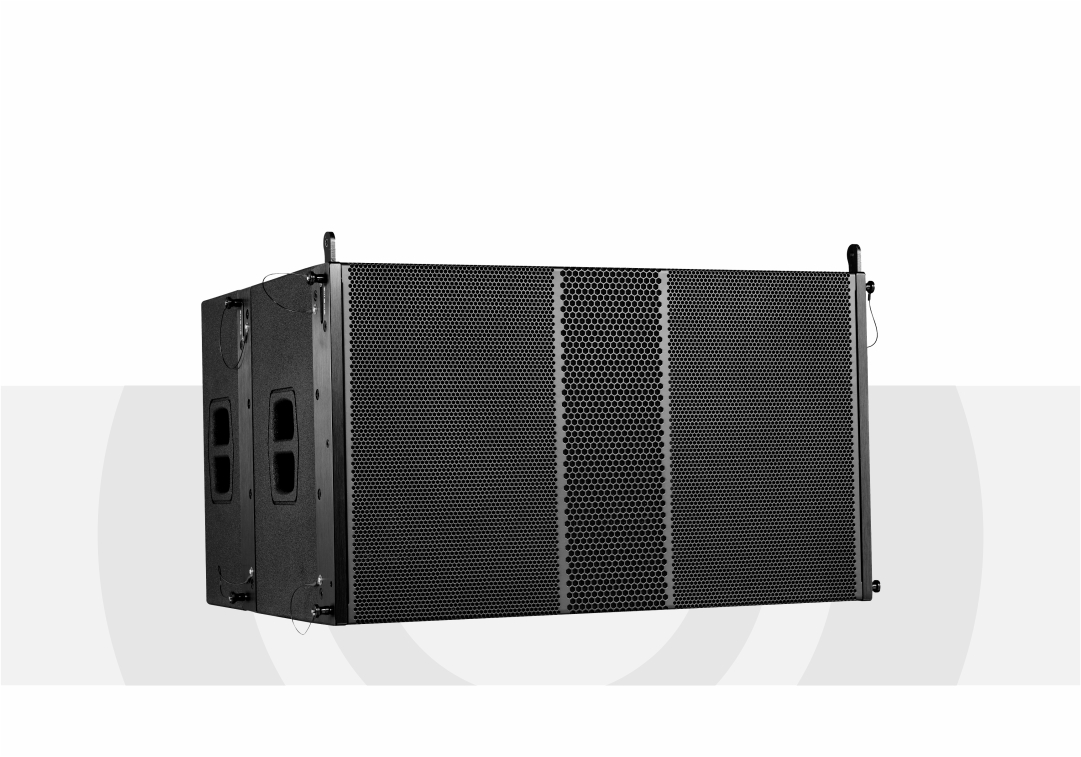

◆ Frequency response Frequency Range (+/-3 dB): 40Hz-1000Hz

◆ Sensitivity: 99dB

◆ Maximum SPL:129dB

◆ Unit composition Driver: LF1x 18"

◆ Nominal Impedance: 8Ω

◆ Rated Power Handling: 600W

◆ Connection:2x Speakon NL4

◆ Product dimensions:(WxDxH)851x645x581mm

◆ Net weight N.W: 50KG

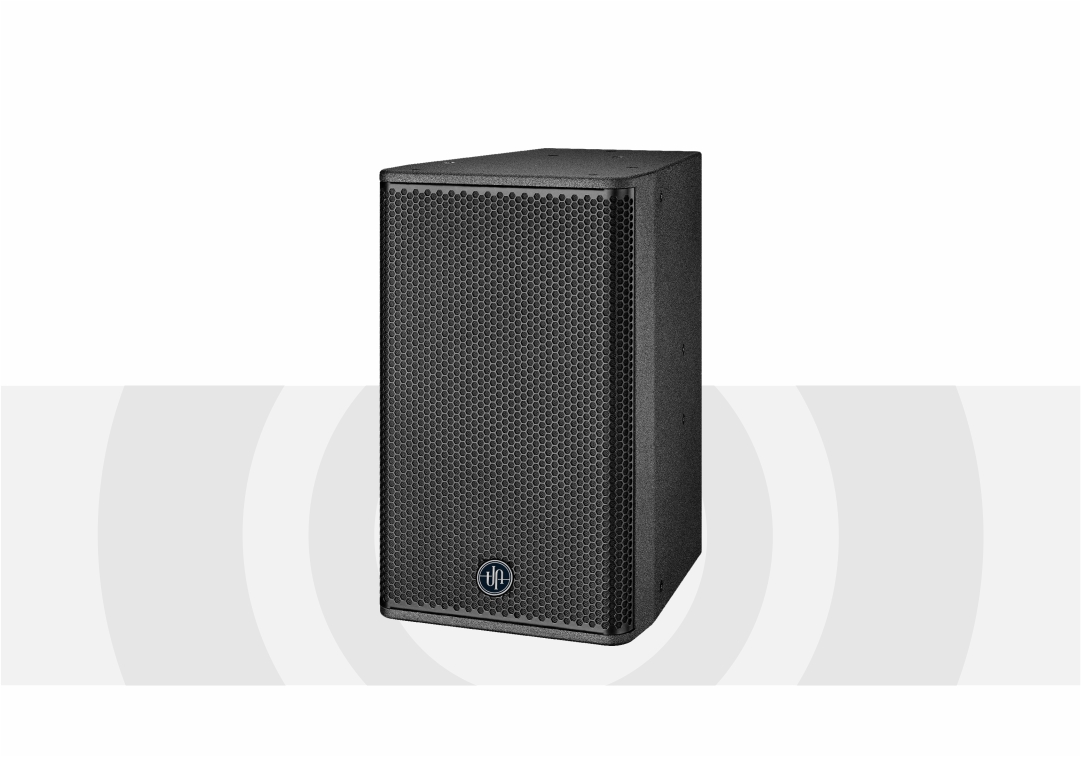

◆ Frequency response: 55Hz ~ 20KHz;

◆ Rated power :400W, peak power: 1200W;

◆ Sensitivity :99dB,

◆ Impedance :8Ω,

◆ Maximum sound pressure level: 128dB,

◆ Box size (HxWxD) : 600X380X379 (mm);

◆ Weight: 23KG.

◆ Stereo power: 8Ω850W*2,THD:0.05%1/8

◆ Power 1KHz,4Ω1275W*2, 8ω

◆ Bridge power :2550W,

◆ SNR: 105dB,

◆ Conversion rate: 60V/us,

◆ Damping coefficient: 550:1,

◆ Frequency response: 20Hz-20KHz(±0.3dB),

◆ Input sensitivity: 0.775V,

◆ Input impedance: 10K ohms-20K ohms,

◆ The panel light: Signal, dctive, clip/limiting,

◆ Power supply: 220V,50/60z,

◆ Maximum power consumption: 3500W,

◆ Net weight: 18.5kg.

◆ Size: (D)450mm*(W)483mm*(H)88mm

◆ Stereo power: 8Ω650W*2,THD:0.05%1/8

◆ Power 1KHz,4Ω975W*2,

◆ Bridge power :1950W,

◆ SNR: 105dB,

◆ Conversion rate: 60V/us,

◆ Damping coefficient: 500:1,

◆ Frequency response: 20Hz-20KHz(±0.3dB),

◆ Input sensitivity: 0.775V/1V/1.44V,

◆ Input impedance: 10K ohms(unbalanced) -20K ohms(balanced),

◆ The panel light: Signal, dctive, clip/limiting,

◆ Power supply: 220V,50/60z

◆ Maximum power consumption: 2700W,

◆ Net weight: 16.5kg.

◆ Size: (D)450mm*(W)483mm*(H)88mm

◆ Stereo power: 8Ω1000W*2,THD:0.01%1/8

◆ Power 1KHz,4Ω1800W*2

◆ Bridge power :3600W,

◆ SNR: 108dB,

◆ Conversion rate: 80V/us,

◆ Damping coefficient: 550:1,

◆ Frequency response: 20Hz-20KHz(±0.3dB),

◆ Input sensitivity: 0.775V/1V/1.55V,

◆ Input impedance: 10K ohms-20K ohms,

◆ The panel light: Signal, dctive, clip/limiting,

◆ Power supply: 220V,50/60z,

◆ Maximum power consumption: 5000W,

◆ Net weight: 22.5kg

◆ Size: (D)450mm*(W)483mm*(H)88mm

◆ 16 mono and 4 stereo channels, 24 channel models

◆ 1-16 channel mono with external expansion, attenuation, low cut, independent 48V

◆ 17-24 stereo channel high quality low noise balanced microphone input with attenuation function. 21-22 channels 5.1 input and 6.3 input, convertible at any time

◆ AUX 1&2,3 can add effects output, MONITOR stereo auxiliary input

◆ MP3 independent high and low frequency adjustment

◆ Mono input 4-band equalizer, stereo 3-band equalizer, each channel has a mute ON switch and monitoring function

◆ 3 AUX auxiliary outputs and 1 FX auxiliary output

◆ 96KHz sampling frequency, 32-bit DSP processor, 24-bit A/D and D/A conversion

◆ Provides USB, RS232 interface, network port and WIFI connection to the computer

◆ Through PC control software to control, are very convenient and simple

◆ Each input and output are provided with 8 independent parametric equalization sections, and the adjustable gain range can reach ±20dB

◆ At the same time, the output channel balance can also choose Lo-shelf, Hi-shelf two skew wave mode

◆ Mode Each channel has delay, polarity and mute Settings, and the delay can be up to 1000ms

◆ The output channel can also control the gain, voltage limit and input channel signal selection function

◆ Diversity receiver for optimal reception

◆ Wireless synchronization of the transmitter is realized by infrared frequency matching and manual frequency modulation

◆ Wireless receiving distance is adjustable,

◆ Frequency lockable control function button

◆ Unique intelligent ID identification technology to achieve multiple sets of simultaneous distribution

◆ With balanced and unbalanced audio output, easy to connect with various audio equipment

◆ The transmitter is powered by two 1.5V batteries for long battery life and easier maintenance

◆ The transmitter uses 50MHz bandwidth, which is convenient for interchanging frequency segments, especially during performances

◆ The transmitter is made of high-strength alloy material and durable

◆ Easy to read illuminated LCD display

◆ Perfect solution for anti-whistling in the conference system;

◆ 2 inch TFT color screen, English and Chinese optional;

◆ Feedback plus frequency shift design scheme, frequency shift 4 optional;

◆ Each channel is equipped with 12 traps, working frequency 20-20KHZ, automatic scanning and suppression of whistling points;

◆ Unique noise gate function can suppress the weak noise interference of the system;

◆ Input compression function, eliminate feedback and expand voice dynamics;

◆ Response time fast, medium and slow 3 speed can be fixed, more humanized;

◆ Equipped with professional PC debugging software, USB free driver plug and play, convenient and fast;

◆ Technical parameters of eight-way signal amplifier: (standard aviation case)

◆ Frequency range: 500-940MHz

◆ Input cut-off point: +22dBm

◆ Noise ratio: 4.0dB Type(Center Band)

◆ Gain: +6-9dB(Center Band)

◆ Output impedance: 15dB min

◆ Impedance: 50Ω

◆ Bandwidth: 300MHz

◆ Socket: TNC female

◆ Power supply: 100-240V/50/60Hz

◆ Rated output voltage: AC 220V,50Hz

◆ Rated output current: 30A

◆ Controllable power supply: 8 channels

◆ Each action delay time: 1 second

◆ Power supply: AC/220V 50/60Hz 25A

◆ Each output with light/digital tube display

◆ Single rated output power supply: 30A up to 3000W"
