◆ 2X10" linear array external three-way speaker

◆ Frequency response (-10dB) 55Hz-18KHz

◆ Covering Angle (-6dB) 90°X10°

◆ Maximum sound pressure level LF:125dB/131(Peak)MF:125dB/131(Peak)HF:129dB/135(Peak)

◆ Sensitivity LF:97dB/MF:99dB/HF:109dB

◆ Rated impedance LF:82/MF:82/HF:82

◆ Rated power LF:600W/MF:400W/HF:120W

◆ Component unit Bass :10"X2 Alto :5"X4

◆ High pitch :3"X2

◆ Dimensions (including bolt) W946XD465XH310(mm)

◆ Weight 35(kg)

◆ Connecting socket LF+/-:1/2MF+/-:3/4HF+/-:5/6(2x6-core aviation waterproof socket)

◆ Impedance: 4Ω

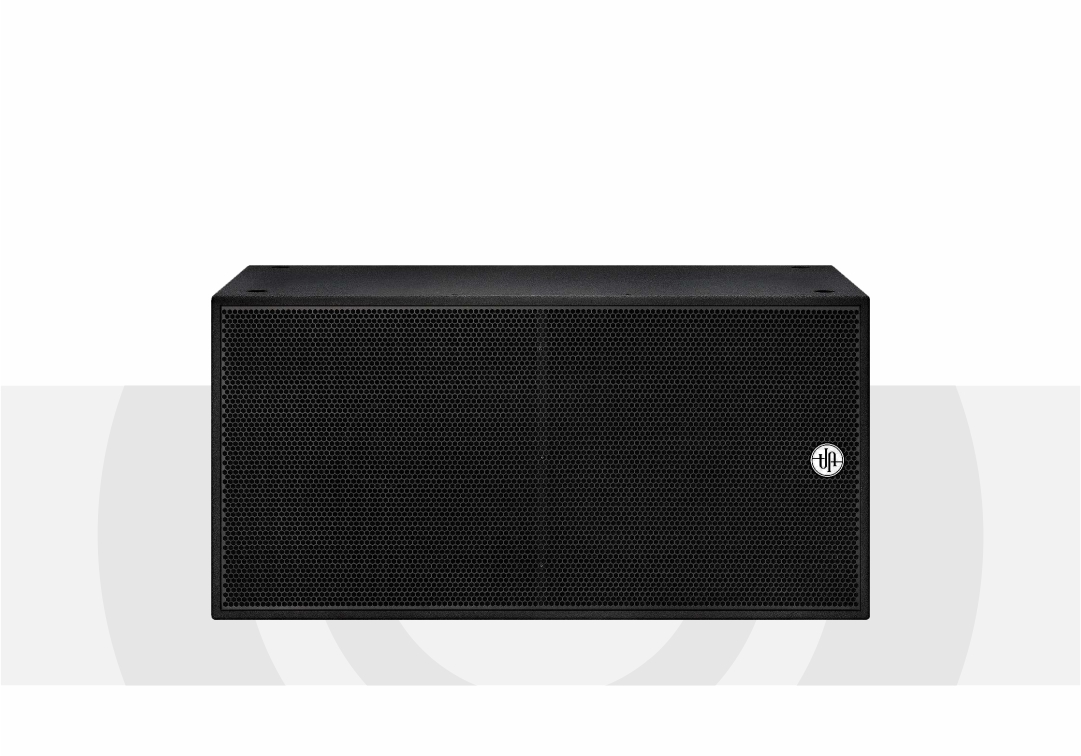

◆ Frequency response: 35Hz-200Hz

◆ Sensitivity: 98dB/W/m

◆ Composition: 18" (220 magnetic 100 cores) ×2

◆ Average power: 2000W Peak power: 4800W

◆ Size: 1060x760x550mm(W X D X H)

◆ Maximum sound pressure level :130dB (continuous) 136dB (peak)

◆ Impedance: 8Ω

◆ Frequency response: 65Hz-18.5KHz

◆ Sensitivity: 102dB/W/m

◆ Diffusion Angle: 90°H x 90°V

◆ Construction: 12" (190 magnetic 75 core) +1.7" Horn (44 core) coaxial unit with magnet

◆ Average power: 400W

◆ Frontal power: 1600W

◆ Size: mm(width 460 depth 300 height 460)

◆ Maximum sound pressure level :132dB

◆ Weight: 17kg

◆ Gross weight :19kg

◆ Output power (20-20KHZ/THD≤1% stereo/parallel 8 OHM * 2:1300W *2; 4 Euro 2250W*2; Bridge 8 Euro 3600W.

◆ Connector: XLR balance interface.

◆ Input sensitivity: 0.775V/1V/1.44V

◆ Input impedance: 10K unbalanced, 20K balanced.

◆ Protection mode: over current protection, DC protection, short circuit protection, limiting protection.

◆ Indicator light: Power, protection, distortion. 12 Cooling mode, temperature control fan stepless speed change.

◆ Power supply: AC 220V:50HZ.

◆ Maximum power consumption 2600W.

◆ Size: (L*W*H)482*470*88.

◆ Weight 14KG

◆ Stereo power: 8Ω1800W*2,THD:0.01%1/8 power 1KHz,4Ω2700W*2,

◆ SNR: 108dB,

◆ Frequency response: 20Hz-20KHz(±0.3dB),

◆ Input sensitivity: 0.775V/1V/1.55V,

◆ Input impedance: 10K ohms-20K ohms,

◆ The panel light: Signal, dctive, clip/limiting,

◆ Power supply: 220V,50/60z,

◆ Maximum power consumption: 6200W,

◆ Net weight: 26.5kg

◆ Size: (D)450mm*(W)483mm*(H)88mm

◆ Input: 4 analog balance input, 2 AES/EBU digital input; 1 Expansion DANTE port

◆ Output: 8 analog balanced output;

◆ Frequency response: 20Hz ~ 20kHz (+/-0.5dB);

◆ Signal to noise ratio: ≥101dB;

◆ Balance: each input and output have 10 PEQ segments;

◆ frequency division: Butterworth, Bessel, Linkwitz - Riley, 12.18.24 dB/octave;

◆ Control interface: USB and Ethernet (RJ45), through the connection of PC, MAC Settings and real-time monitoring;

◆ Operating system: Support Windows/Mac;

◆ Power supply: 220-240V AC, 50/60Hz.

◆ Rf modulation mode: broadband frequency modulation

◆ Frequency range: 626--662 740--776 780--820 MHz

◆ Frequency adjustment: 1600 receiving frequencies can be tuned in 25KHz steps

◆ Replaceable pickup head with shure interface

◆ Working bandwidth: 40MHz

◆ Phantom power output: 10V

◆ Control tone silence: pilot control tone

◆ Communication encryption: 128-bit encoding encryption

◆ Rf Power output: 30mW (Max)

◆ Battery requirements: 2 3V AA batteries

◆ Rf modulation mode: broadband frequency modulation

◆ Frequency range: 626--662 740--776 780--820 MHz

◆ Frequency adjustment: 1600 receiving frequencies can be tuned in 25KHz steps

◆ Replaceable pickup head with shure interface

◆ Working bandwidth: 40MHz

◆ Phantom power output: 10V

◆ Control tone silence: pilot control tone

◆ Communication encryption: 128-bit encoding encryption

◆ Rf Power output: 30mW (Max)

◆ Battery requirements: 2 3V AA batteries

◆ Main technical parameters:

◆ Operating frequency range :490-960MHz;

◆ Power supply mode: BNC,5-10VDC;

◆ Antenna type: logarithmic cycle;

◆ Input impedance: 50 ohms;

◆ Gain: 12dB;

◆ Directivity: horizontal 90°;

◆ Connector type: BNC;

◆ Model L214 L214A

◆ Input power supply three-phase five-wire, AC 380 50Hz

◆ Rear panel 14 way controllable (upper and lower two sockets for a group, a total of 7 groups, each ◆ channel control 1 group at the same time switch)

◆ The delay time of each action is 1 second

◆ Maximum output current of a single input The total current of the devices connected to the upper and lower sockets of a group is limited to 30A for 60 seconds or 16Arms

◆ Maximum input current 80A

◆ With power filters None, 7 16A special filters

◆ Package Size 557*462*145 mm (mm)
