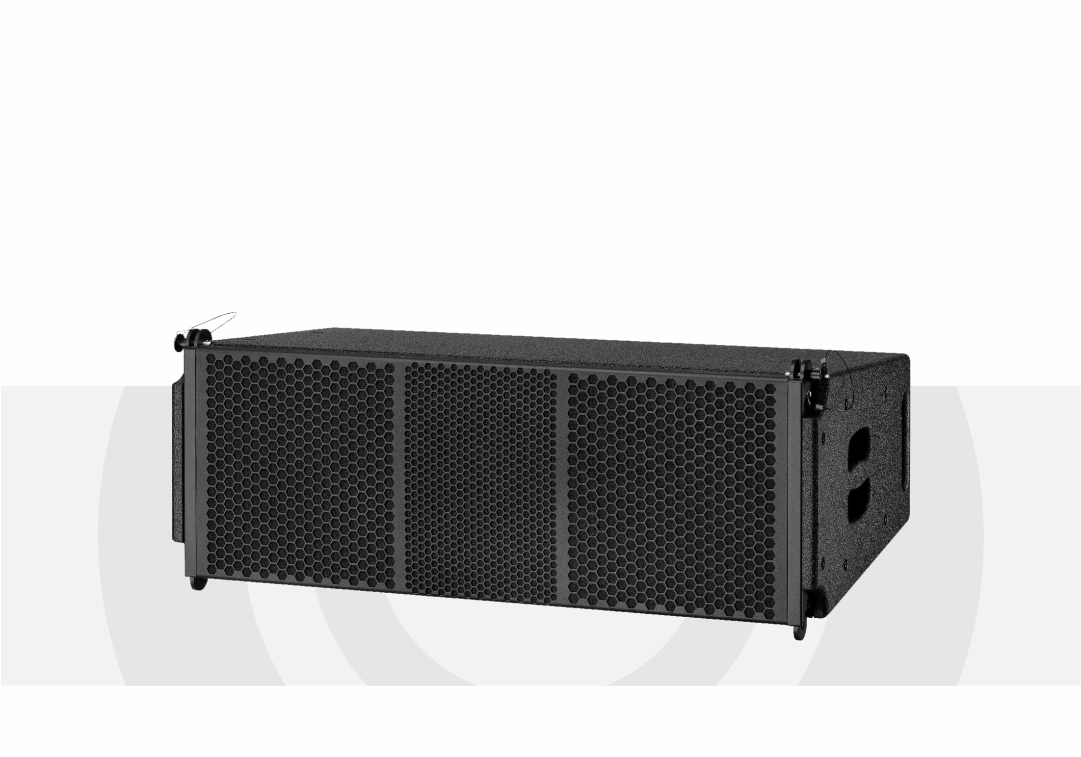

◆ Driver: * 2 x 10" low frequency driver 1 x 3" high frequency driver

◆ Nominal Impedance :8Ω

◆ Power Handling: 650W

◆ Frequency Range :65 Hz -20kHz

◆ Dispersion(-6 dB): H x V90°x 10°

◆ Sensitivity: 101dB

◆ Maximum SPL:129dB/peak135dB

◆ Connection: 2x Speakon NL4

◆ Speaker size (WxDxH) : 851x425x295mm

◆ N.W:29KG

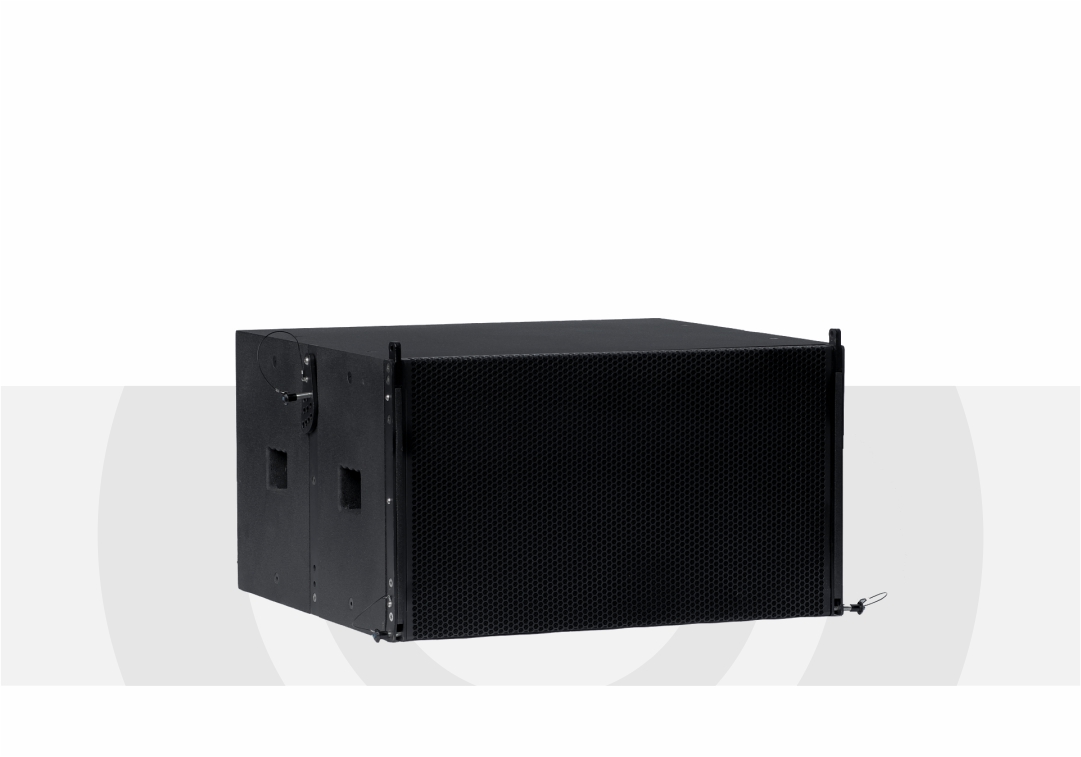

◆ Frequency Range (+/-3 dB):40Hz - 1000Hz

◆ Sensitivity: 99dB

◆ Maximum SPL:129dB

◆ Driver：LF1x 18"

◆ Nominal Impedance: 8Ω

◆ Power Handling: 600W

◆ Connection:2x Speakon NL4

◆ Product dimensions:(WxDxH)851x645x581mm

◆ N.W : 50KG

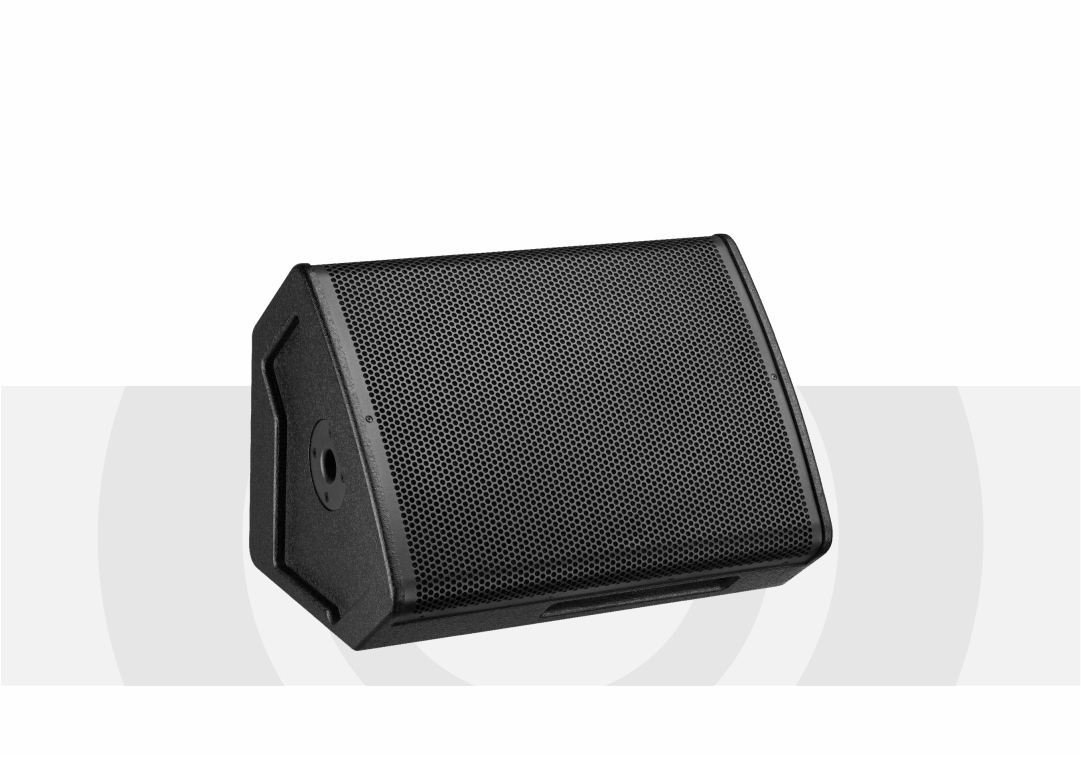

◆ Impedance: 8Ω

◆ Frequency response: 65Hz-18.5KHz

◆ Sensitivity: 102dB/W/m

◆ Average power: 400W

◆ Frontal power: 1600W

◆ Size: mm(width 460 depth 300 height 460)

◆ Maximum sound pressure level :132dB

◆ Weight: 17kg

◆ Gross weight :19kg

◆ Output power (20-20KHZ/THD≤1% stereo/parallel 8 OHM * 2:1300W *2; 4 Euro 2250W*2; Bridge 8 Euro 3600W.

◆ Connector: XLR balance interface.

◆ Input sensitivity: 0.775V/1V/1.44V

◆ Input impedance: 10K unbalanced, 20K balanced.

◆ Signal-to-noise ratio (A weight) : ≥97db

◆ Protection mode: over current protection, DC protection, short circuit protection, limiting protection.

◆ Indicator light: Power, protection, distortion.

◆ Cooling mode, temperature control fan stepless speed change.

◆ Power supply: AC 220V:50HZ.

◆ Maximum power consumption: 2600W.

◆ Size: (L*W*H)482*470*88.

◆ Weight: 14KG

◆ Output power (20-20KHZ/THD≤1% stereo/parallel 8 OHM * 2:1300W *2; 4 Euro 2250W*2; Bridge 8 Euro 3600W.

◆ Connector: XLR balance interface.

◆ Input sensitivity: 0.775V/1V/1.44V

◆ Input impedance: 10K unbalanced, 20K balanced.

◆ Signal-to-noise ratio (A weight) : ≥97db

◆ Protection mode: over current protection, DC protection, short circuit protection, limiting protection.

◆ Indicator light: Power, protection, distortion.

◆ Cooling mode, temperature control fan stepless speed change.

◆ Power supply: AC 220V:50HZ.

◆ Maximum power consumption: 2600W.

◆ Size: (L*W*H)482*470*88.

◆ Weight: 14KG

◆ Stereo power: 8Ω850W*2,THD:0.05%1/8 power 1KHz,4Ω1275W*2, 8ω

◆ Bridge power :2550W,

◆ SNR: 105dB,

◆ Frequency response: 20Hz-20KHz(±0.3dB),

◆ Input sensitivity: 0.775V,

◆ Input impedance: 10K ohms-20K ohms,

◆ The panel light: Signal, dctive, clip/limiting,

◆ Power supply: 220V,50/60z,

◆ Maximum power consumption: 3500W,

◆ Net weight: 18.5kg.

◆ Size: (D)450mm*(W)483mm*(H)88mm

◆ The 40-channel digital mixer for live sound reinforcement and recording studios has 32 built-in MIDAS classic speakers and 25 mixing busbars

◆ 32 input channels, 16 AUX outputs, 6 marshalling

◆ 40bit floating-point signal processing, open architecture compatible with 96kHz sampling rate

◆ 192kHz digital-to-analog/analog-to-digital conversion provides excellent audio performance

◆ 25 synchronous phase consistent mixing busbars

◆ 8 DCA groups and 6 mute groups

◆ 8 stereo effects and up to 50 different effects types

◆ 1 stereo AES/EBU output

◆ 1 Input and output to MIDI

◆ 25 100mm MIDAS PRO electric faders

◆ 7 "TFT color" Daylight "display

◆ Support for Behringer's personal monitoring system P16

◆ Support for U disk recording and playback in FAT32 format (up to 2 tracks at 44.1kHz sampling rate)

◆ Support DAW post-production routing control

◆ Built-in RTA function

◆ Support 32x32 channels of digital audio transmission via USB 2.0

◆ Control digital audio workstations by using Mackie Control and Hui protocols control protocols

◆ It can be controlled wirelessly by the MIDAS Apps app in IPhone/IPad

◆ Size: 891*607*256MM 24.5KG

Product features:

◆DX series is a full digital audio processor, the appearance is simple and generous;

◆96KHz sampling frequency, 32-bit DSP processor, 24-bit A/D and D/A conversion;

◆Provide USB, RS232 interface, network port and WIFI can connect to the computer; Through PC control software to control, are very convenient and simple;

◆Each input and output are provided with 8 independent parameter equalization sections, and the adjustable gain range can reach ±20dB; At the same time, the output channel balance can also choose Lo-shelf, Hi-shelf two skew wave mode;

◆Mode Each channel has delay, polarity and mute Settings, delay up to 1000ms;

◆The output channel can also control the gain, voltage limit and input channel signal selection function;

◆Variable high/low pass filter with optional response of Bessel, ◆Butterworth 12dB,18dB,24dB or Linkwitz-Riley 12dB,18dB,24dB,48dB;

◆Can store 12 groups of user programs.

◆ Model L214 L214A

◆ Input power supply three-phase five-wire, AC 380 50Hz

◆ Power switch and overcurrent protection 32A 3P air switch with overcurrent and short circuit protection

◆ Number of channels The front panel has 1 direct channel

◆ Rear panel 14 way controllable (upper and lower two sockets for a group, a total of 7 groups, each channel control 1 group at the same time switch)

◆ The delay time of each action is 1 second

◆ Maximum output current of a single input The total current of the devices connected to the upper and lower sockets of a group is limited to 30A for 60 seconds or 16Arms

◆ Maximum input current 80A

◆ With power filters None, 7 16A special filters

◆ Package Size 557*462*145 mm (mm)

◆ Diversity receiver for optimal reception

◆ Wireless synchronization of the transmitter is realized by infrared frequency matching and manual frequency modulation

◆ Wireless receiving distance is adjustable,

◆ Frequency lockable control function button

◆ Unique intelligent ID identification technology to achieve multiple sets of simultaneous distribution

◆ With balanced and unbalanced audio output, easy to connect with various audio equipment

◆ The transmitter is powered by two 1.5V batteries for long battery life and easier maintenance

◆ The transmitter uses 50MHz bandwidth, which is convenient for interchanging frequency segments, especially during performances

◆ The transmitter is made of high-strength alloy material and durable

◆ Easy to read lighting LCD display

◆Operating frequency range :490-960MHz;

◆Power supply mode: BNC,5-10VDC;

◆Antenna type: logarithmic cycle;

◆Input impedance: 50 ohms;

◆Gain: 12dB;

◆Directivity: horizontal 90°;

◆Connector type: BNC;
