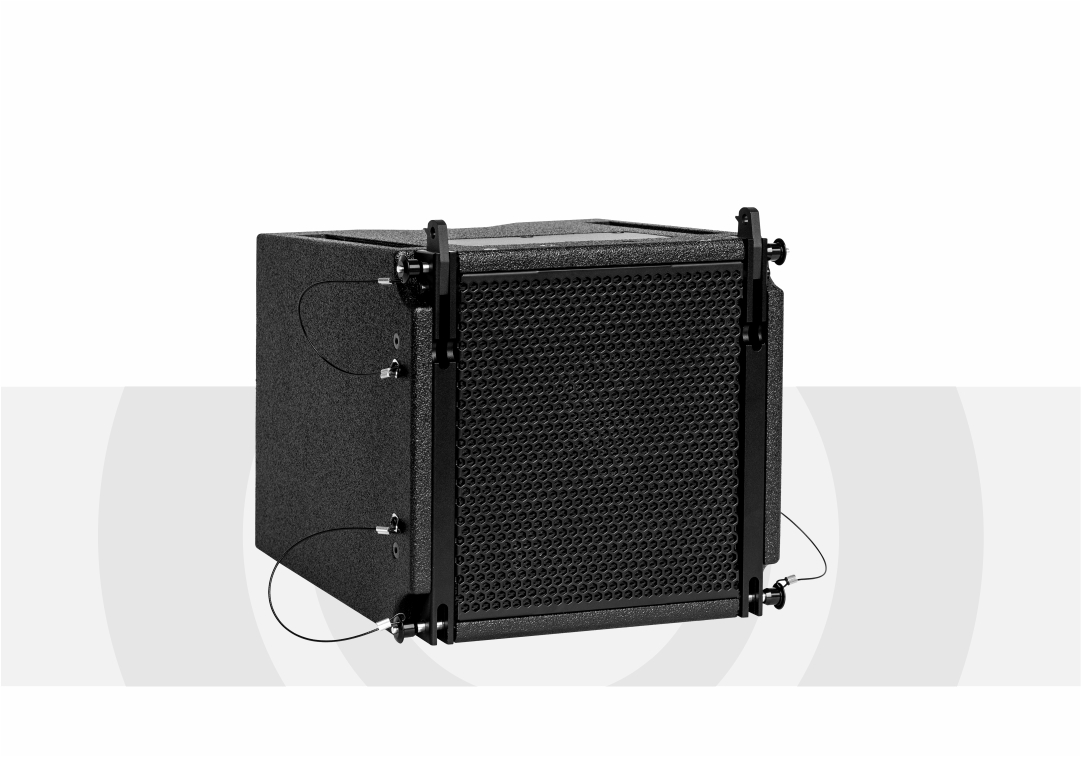

◆ 1X10" linear array external dual frequency speaker

◆ Frequency response (soil 3dB) 105Hz-16KHz

◆ Covering Angle (-6dB) 90°X60°

◆ Maximum sound pressure level LF:123dB/129(Peak)HF:129dB/135(Peak)

◆ Sensitivity LF:98dB/HF:110dB

◆ Rated impedance LF:162/HF:162

◆ Rated power LF:350W/HF:80W

◆ Component bass :10"X1

◆ High pitch :1"X2

◆ Dimensions (including bolt) W295XD310XH280(mm)

◆ Weight 12.2(kg)

◆ Connect socket LF:+1/-1HF:+2/-2

◆ 1X18" linear array active subwoofer

◆ Frequency response (±3dB) 55Hz-300Hz

◆ Coverage Angle (-6dB) 360°X360°

◆ Max Pressure Level LF:121dB/127(Peak)

◆ Sensitivity LF:93dB

◆ Rated impedance LF:8Ω

◆ Rated power LF:600W

◆ Component bass :18"X1

◆ Dimensions (including bolt) W550XD640XH510(mm)

◆ Weight 49(kg)

◆ Product size: 426x135x72;

◆ Power supply: 95~240V/50~60Hz, ±10%

◆ Based on Linux operating system development, without fear of viruses, more secure and stable operation

◆ 12 analog signal inputs (8 MIC/Line analog inputs,2 groups of 3.5 Lotus stereo analog inputs)

◆ Support +48V phantom power supply (MIC channel can be opened and closed independently)

◆ Input built-in noise gate, pressure limiter, high-low pass, 4-stage parameter equalization, delay, phase, sound and image balance adjustment of the transmission channel

◆ The MIC/Line input supports independent feedback suppression to effectively suppress whistling

◆ MIC/Line input has microphone priority function setting

◆ 7 high-precision electric faders with 100mm stroke can be stored in time

◆ 8-channel output (L/R stereo main output, AUX1-4 four-channel mono auxiliary output, two stereo headphone outputs)

◆ Output built-in 15-segment parametric EQ equalization, pressure limiter, high-low pass filter, delay, phase

3 channels of digital signal output (MP3 recording output, two channels of USB sound card recording output)

◆ With 96-segment real-time spectrum RTA function, real-time frequency scanning, fast positioning of screaming points

◆ Supports two main mixing breakpoints INSERT input and output

◆ Built-in two independent effects unit (multiple karaoke effects and instrument effects)

◆ Built-in 5.0 dual-mode digital word Bluetooth, support Bluetooth music playback and APP debugging

◆ 8 DCA groups and 8 silent groups

◆ Built-in signal generator

◆ Support faders to coordinate

◆ Two independent OTG sound card live interface, can directly connect to the mobile phone for live broadcast, and have the phone charging Settings

◆ Built-in a variety of special effects sound, one-click playback, support for customization

◆ Panel 4 shortcut scene call modes, one-click loading

◆ 20 scene modes can be stored and accessed by users

◆ Support infrared remote control one-click control

◆ Support TCP control

◆ Multi-operating system control software, mobile APP, computer debugging

◆ Support 100M wired network port adjustment (or external router wireless adjustment)

◆ Support 12V DC power supply, 10000mA, more than 5 hours of working time

◆ Supports panel locking to prevent misoperations

◆ 5-inch 800*480 HD capacitive touch display

Machine size/weight

◆ Length width height: 31*31.5*7.5cm

◆ Net weight: 2.8kg

◆ Packing size: 42*41*17cm

◆ Packing weight: 3.5kg

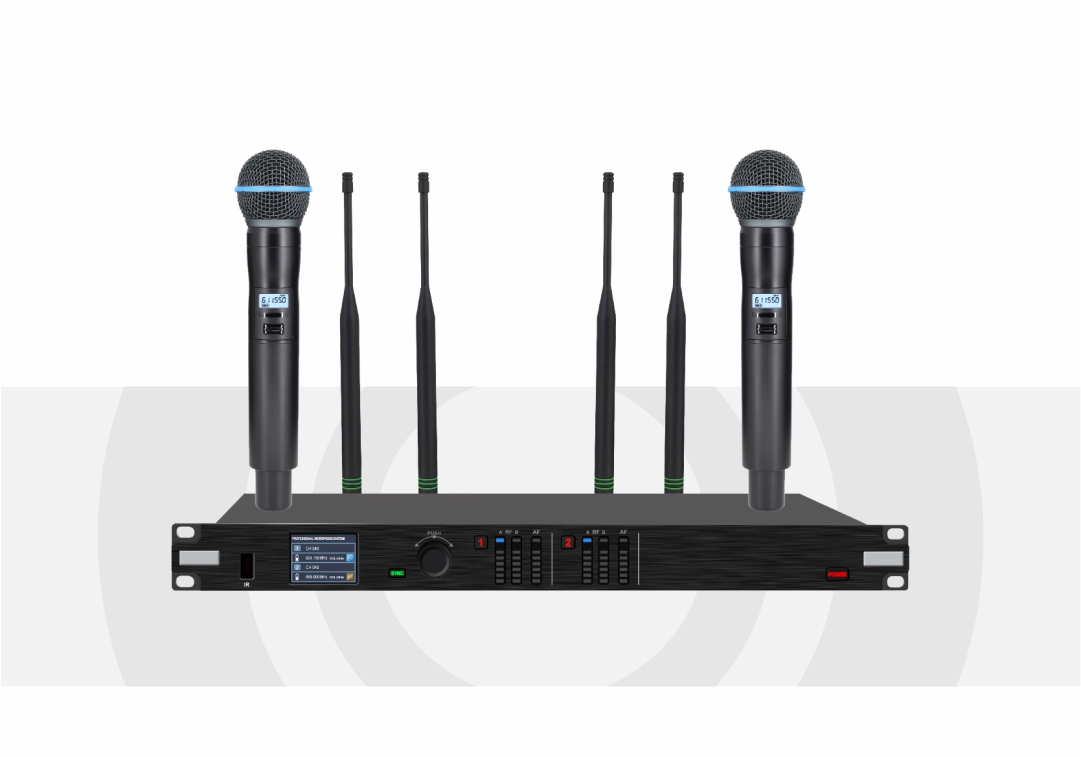

◆ Rf modulation mode: broadband frequency modulation

◆ Frequency range: 626--662 740--776 780--820 MHz

◆ Frequency adjustment: 1600 receiving frequencies can be tuned in 25KHz steps

◆ Replaceable pickup head with shure interface

◆ Working bandwidth: 40MHz

◆ Phantom power output: 10V

◆ Control tone silence: pilot control tone

◆ Communication encryption: 128-bit encoding encryption

◆ Rf Power output: 30mW (Max)

◆ Battery requirements: 2 3V AA batteries
