◆ The LF210 is a three-unit two-frequency line-array full-frequency speaker.

◆ System type: three-unit two-frequency speaker

◆ Rated power: 600W;

◆ Peak power: 1200W;

◆ Nominal impedance: 8 ohms;

◆ Tweeter Unit: 1 x 3 inch (75mm diaphragm) neodymium magnetic compression driver

◆ Subwoofer: 2 x 10 inch (65mm voice coil) ferrite subwoofer

◆ Sensitivity: 100dB

◆ Frequency response: 60Hz ~ 20KHz

◆ Diffusion Angle: 90° (horizontal) X 12° (vertical)

◆ Maximum sound pressure level: 127dB

◆ Frequency division point: 1.5KHz

◆ Overall dimensions (WxHxD) :893 x 275 x 478 (mm)

◆ Net weight: 38Kg

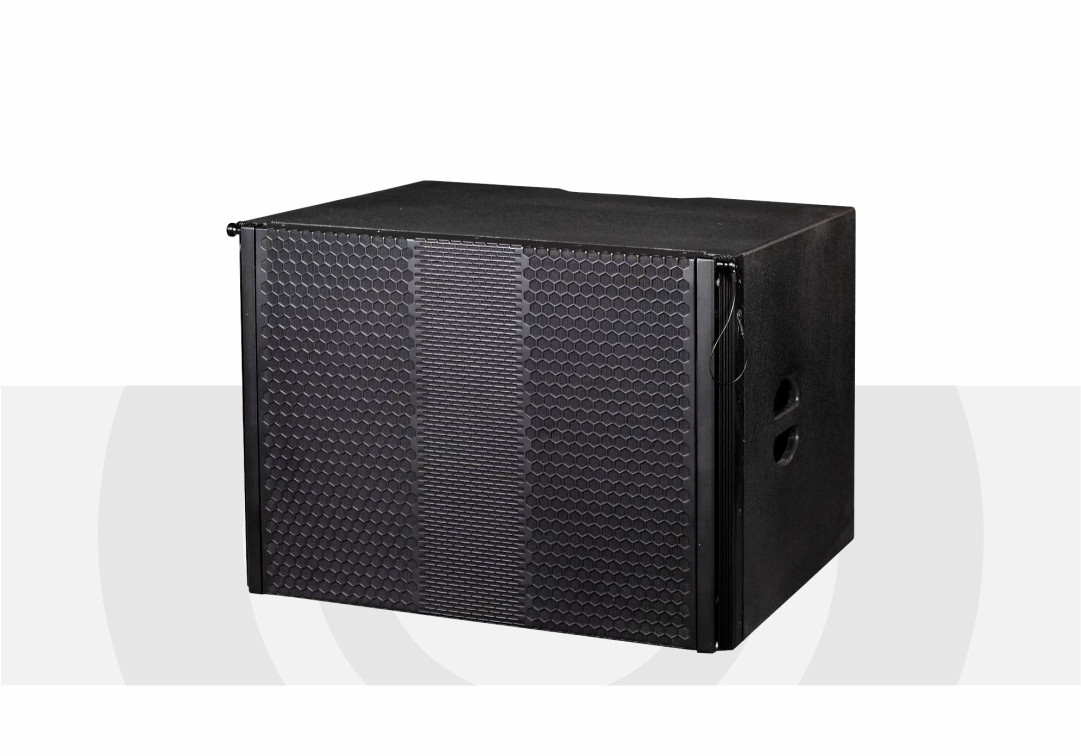

◆ The LF18 is an ultra-low frequency speaker, and the full frequency speaker LF210 is hoisted together.

◆ Rated power: 700W;

◆ Peak power: 1400W;

◆ Nominal impedance: 8 ohms

◆ Subwoofer: 1 x 18 inch (100mm voice coil) ferrite subwoofer

◆ Sensitivity: 103dB

◆ Frequency response: 35Hz ~ 150Hz

◆ Maximum sound pressure level: 130dB

◆ Diffusion Angle: N/A

◆ Recommended power amplifier: 800-1000 watts /8 ohms;

◆ Overall dimensions (WxHxD) : 893 x 575 x 521mm

◆ Net weight: 54.5 Kg

◆ Optional external divider

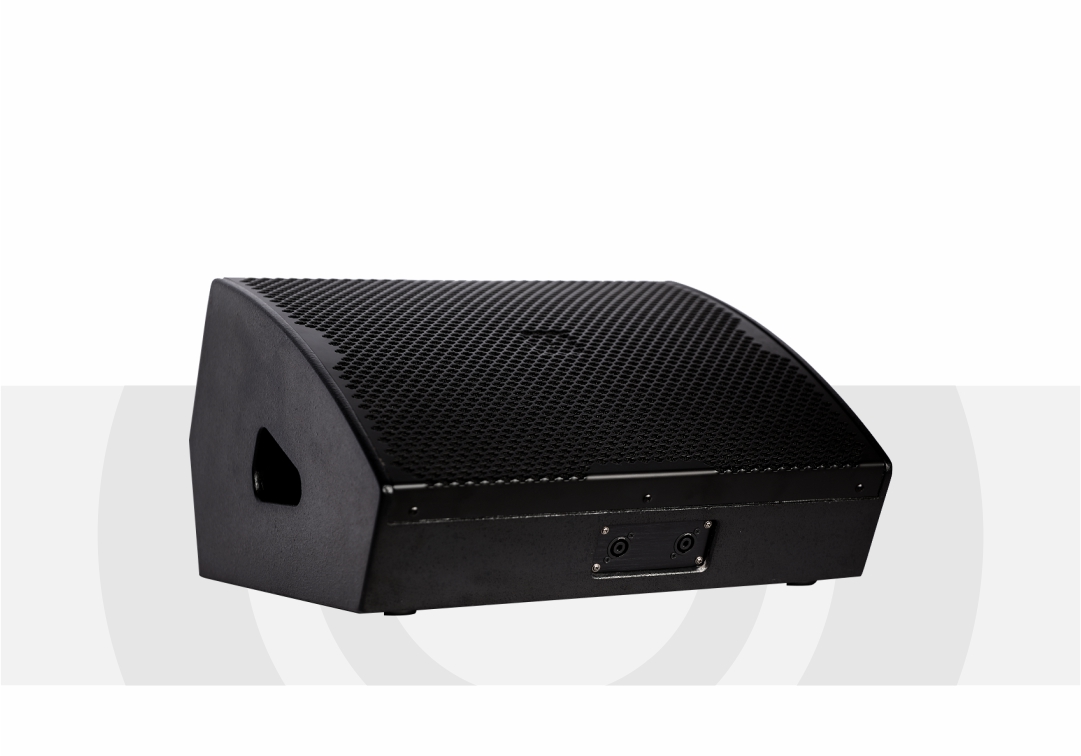

◆ The LF12 is a two-frequency professional return speaker.

◆ System type: two-unit dual-frequency speaker

◆ Rated power: 400W (RMS)

◆ PEAK power: 1600W(PEAK)

◆ Nominal impedance: 8 ohms,

◆ Tweeter unit: 1 x 1.75 inch (44mm diaphragm) ferrite compression driver

◆ Subwoofer: 1 x 12 inch (65mm) ferrite bass

◆ Sensitivity: 97dB

◆ Frequency response: 65Hz ~ 20KHz

◆ Diffusion Angle: 60° (horizontal) X 60° (vertical)

◆ Maximum sound pressure level: 127dB

◆ Overall dimensions (WxHxD) :598 x 327 x483 (mm)

◆ Net weight: 20.7Kg

◆ Rated power: stereo 8 ohms @ 1 kHz: 1000W*2

4 ohms@1 kHz: 1500W*2

◆ Bridged Power bridge mono 8 ohms@1 kHz: 3000W

◆ Power reduction control Power reduction control /

4 Ohm load nominal power state total harmonic distortion 1 kHz: <0.1% 20 Hz ~ 20 kHz: <0.05%

◆ Input common-mode rejection ratio >103dB

◆ Output background noise -103dB

◆ Damping coefficient (1 kHz, 8 ohm load) >300

◆ Frequency response 20 Hz ~ 20 KHz +0 / -0.5dB

◆ Input impedance (active balance) 20K ohms protection functions: DC current (DC) protection, short circuit ◆ protection, current limiting voltage protection, temperature limiting protection.

◆ Volume (Height X Length X depth) 88mmX483mmX460mm Voltage: 220V Mainboard type: Type H

◆ Net weight 23kg

◆ Rated power: Stereo 8 ohms @ 1 kHz: 600W 4 ohms @ 1 kHz: 900W

◆ Bridged Power bridge mono 8 ohms @ 1 kHz: 1800W

◆ Power control -2dB / -4dB / -6dB

◆ Input common-mode rejection ratio >100dB

◆ Output background noise -103dB

◆ Damping coefficient (1 kHz, 8 ohm load) >300

◆ Frequency response 20 Hz ~ 20 KHz +0 / -0.5dB

◆ Input impedance (active balance) 20K ohms

◆ Protection functions: DC current (DC) protection, short circuit protection, current limiting voltage protection, temperature limiting protection.

◆ Volume (Height X Length X depth) 88mmX483mmX460mm

◆ Voltage: 220V

◆ Mainboard type: Type H

◆ Net weight 19kg

Product features:

◆ DX series is a full digital audio processor, the appearance is simple and generous;

96KHz sampling frequency, 32-bit DSP processor, 24-bit A/D and D/A conversion;

Provide USB, RS232 interface, network port and WIFI can connect to the computer; Through PC control software to control, are very convenient and simple;

◆ Each input and output are provided with 8 independent parameter equalization, adjusting gain range up to ±20dB; At the same time, the output channel balance can also choose Lo-shelf, Hi-shelf two skew wave mode;

◆ Mode Each way has delay, polarity and mute Settings, delay up to 1000ms;

The output channel can also control the gain, voltage limit and input channel signal selection function;

◆ Variable high/low pass filter, and optionally with a response of Bessel, Butterworth 12dB,18dB,24dB or Linkwitz-Riley 12dB,18dB,24dB,48dB;

◆ Can store 12 groups of user programs.
