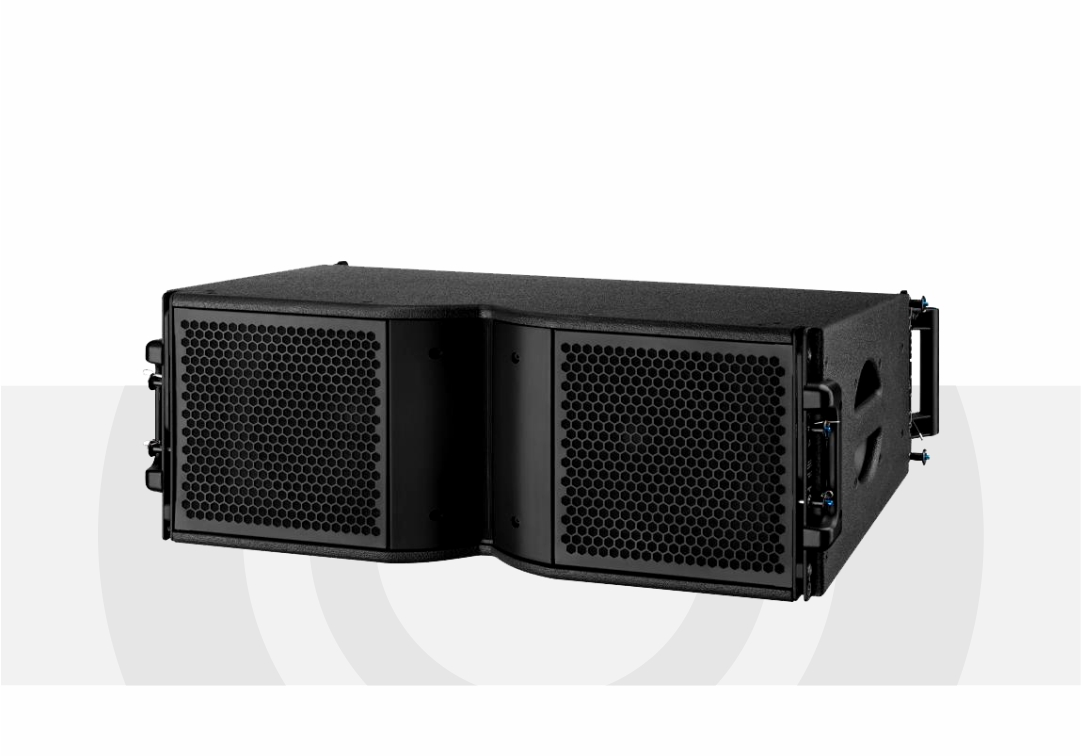

◆ Dual 10 "line array (built-in 2 frequency division)

◆ Frequency range: 50Hz-20kHz

◆ Frequency response: 60Hz-18kHz(±3dB)

◆ Spirit sensitivity: 106dB SPL 1w/1m

◆ Input impedance: 8 ohms

◆ Rated power: 700W

◆ Configuration: Treble: 75mm voice coil /170 magnetic steel,

◆ Bass: 2 x 170mm magnetic steel /75mm voice coil,

◆ Input interface: 2xNeutrik® NL4MP

◆ Box size/height/width/depth: 300mm x780mm x 439mm

◆ Net weight: 37 kg

◆ Driver: 1x 12" low frequency driver 1x 3" high frequency driver

◆ Nominal Impedance: 8Ω

◆ Power Handling: 500W

◆ Frequency Range (+/-3 dB):60 Hz -20kHz

◆ Dispersion(-6 dB): H x V90°x 10°

◆ Sensitivity: 106dB

◆ Maximum SPL: 133dB

◆ Connection: 2x Speakon NL4

◆ Size (WxDxH) : 637x495x387mm

◆ N.W:65KG

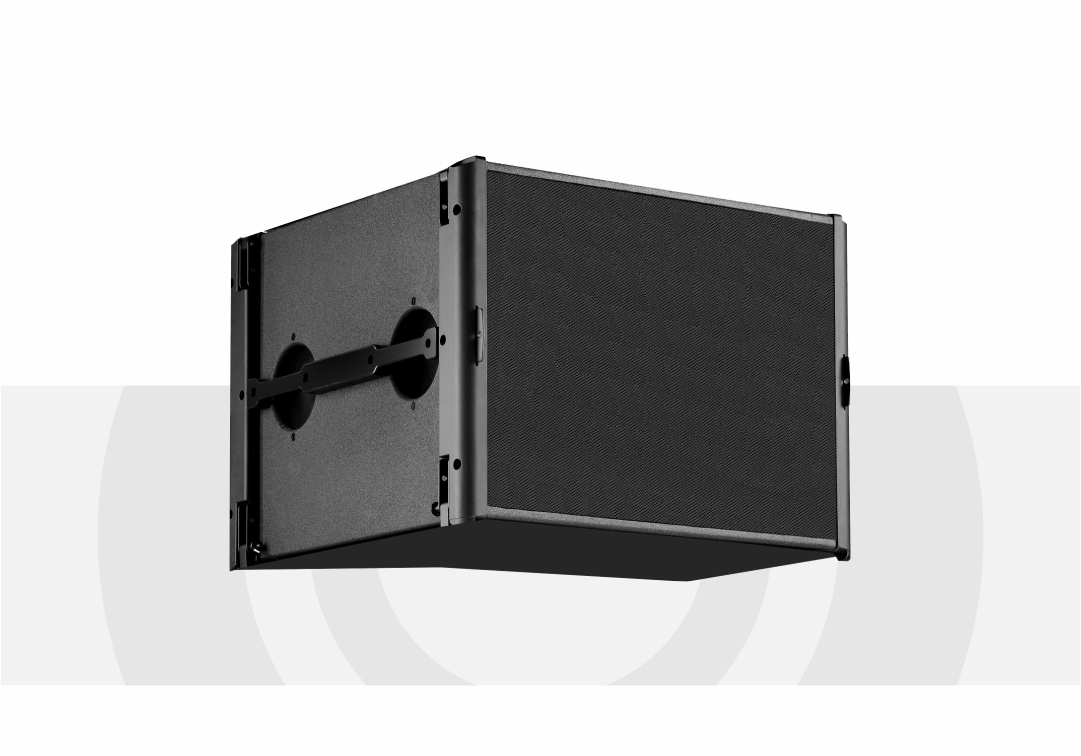

◆ System type: Dual 18-inch subwoofer

◆ Frequency range: 30Hz-500Hz

◆ Frequency response: 35Hz-450Hz(±3dB)

◆ Sensitivity: 105db half space

◆ Input impedance: 4 ohms

◆ Rated power: 2400W

◆ Maximum sound pressure level: 145dB SPL

◆ Input interface: 2xNeutrik® NL4MP

◆ Box size/height/width/depth: 565mm*1351mm*702mm

◆ Net weight (only) : 83 kg

15" two channel full frequency monitoring system

◆ Components:1x15" low frequency drive unit,1x3" treble compression driver

◆ Frequency Response(±3dB) : 65 Hz - 18 kHz (±3 dB)

◆ Sensitivity(SPL1W/ 1m) : 99.5dB SPL (1W@1m)

◆ Nominal Impedance: 8 ohms

◆ Rated Power (AES): 500 watts (rms)

◆ MAX SPL@1m : 128 dB

◆ Dispersion:50° (±10°) (axisymmetric)

◆ Dimensionns: H x W x D 635 mm x 524 mm x 438mm

◆ Weight: 23kg

◆ Output power (20-20KHZ/THD≤1% stereo/parallel 8 OHM * 2:1000W *2; 4 Euro 1800W*2; Bridge 8 Euro 2800W.

◆ Connector: XLR balance interface.

◆ Input sensitivity: 0.775V/1V/1.44V

◆ Input impedance: 10K unbalanced, 20K balanced.

◆ The frequency is 20-20KHZ/±1db under the corresponding 10W power

◆ Protection mode: over current protection, DC protection, short circuit protection, limiting protection.

◆ Indicator light: Power, protection, distortion.

◆ Power supply: AC 220V:50HZ.

◆ Maximum power consumption 2300W.

◆ Size: (L*W*H)482*470*88.

◆ Weight 13KG

◆ Power :1KHz,4Ω2700W*2,

◆ Bridge power :4600W,

◆ SNR: 108dB,

◆ Frequency response: 20Hz-20KHz(±0.3dB),

◆ Input sensitivity: 0.775V/1V/1.55V,

◆ Input impedance: 10K ohms-20K ohms,

◆ The panel light: Signal, dctive, clip/limiting,

◆ Power supply: 220V,50/60z,

◆ Maximum power consumption: 6200W,

◆ Net weight: 26.5kg

◆ Size: (D)450mm*(W)483mm*(H)88mm

◆ Input: 4 analog balance input, 2 AES/EBU digital input; 1 Expansion DANTE port

◆ Output: 8 analog balanced output;

◆ Frequency response: 20Hz ~ 20kHz (+/-0.5dB);

◆ Input/output dynamic range: 120 dB(A);

◆ Signal to noise ratio: ≥101dB;

◆ Balance: each input and output have 10 PEQ segments;

◆ frequency division: Butterworth, Bessel, Linkwitz - Riley, 12.18.24 dB/octave;

◆ Control interface: USB and Ethernet (RJ45), through the connection of PC, MAC Settings and real-time monitoring;

◆ Operating system: Support Windows/Mac;

◆ Power supply: 220-240V AC, 50/60Hz.

◆ 16 MIC input 1 set of stereo input, digital input: AES input/output/sound card, MP3

◆Input channel sound and image adjustment

◆Mic input through DoDGy-even stereo coupling

◆MIC input gain adjustment (digital gain)

◆+48V phantom power supply (MIC channels can be opened and closed independently)

◆Fast copy of channel parameters

◆Input/output EQ ON/OFF

◆Each channel has a multi-function menu, mute and monitor

◆Channels are equipped with 100MM electric push rods, signal and peak lights (17 ALPS electric faders)

◆ 10 signal outputs (main output L,R,4 AUX outputs,4 marshalling outputs)

◆ AUX output (before/after fader)

◆ Output processing: high-low pass filter, 15-stage parametric equalization, compressor, delay, phase

◆ Digital recording function

◆ Built-in sound card (MP3, PC directly play music)

◆ 4 quick scene call modes, 100 scene storage, customizable scene name, seamless scene switching, no break.

◆ Built-in two independent DSP effects

◆ FX foot switch interface

◆ AES digital signal input/output

◆ Support RS232/485/TCP protocol control

◆ Multi-operating system control software (IOS, Android, WINDOWS)

◆ Support 100M wired network port adjustment (or external router wireless adjustment)

◆ 7 "1024*600 HD capacitive touch display

◆ Rf modulation mode: broadband frequency modulation

◆ Frequency range: 626--662 740--776 780--820 MHz

◆ Phantom power output: 10V

◆ Control tone silence: pilot control tone

◆ Communication encryption: 128-bit encoding encryption

◆ Rf Power output: 30mW (Max)

◆ Battery requirements: 2 3V AA batteries

◆ Operating frequency range :490-960MHz

◆ Power supply mode: BNC,5-10VDC

◆ Antenna type: logarithmic cycle

◆ Input impedance: 50 ohms

◆ Gain: 12dB

◆ Directivity: horizontal 90°

◆ Connector type: BNC

◆ Model L214 L214A

◆ Input power supply three-phase five-wire, AC 380 50Hz

◆ Power switch and overcurrent protection 32A 3P air switch with overcurrent and short circuit protection

◆ Number of channels The front panel has 1 direct channel

◆ Rear panel 14 way controllable (upper and lower two sockets for a group, a total of 7 groups, each channel control 1 group at the same time switch)

◆ The delay time of each action is 1 second

◆ Maximum output current of a single input The total current of the devices connected to the upper and lower sockets of a group is limited to 30A for 60 seconds or 16Arms

◆ Maximum input current 80A

◆ With power filters None, 7 16A special filters

◆ Package Size 557*462*145 mm (mm)
