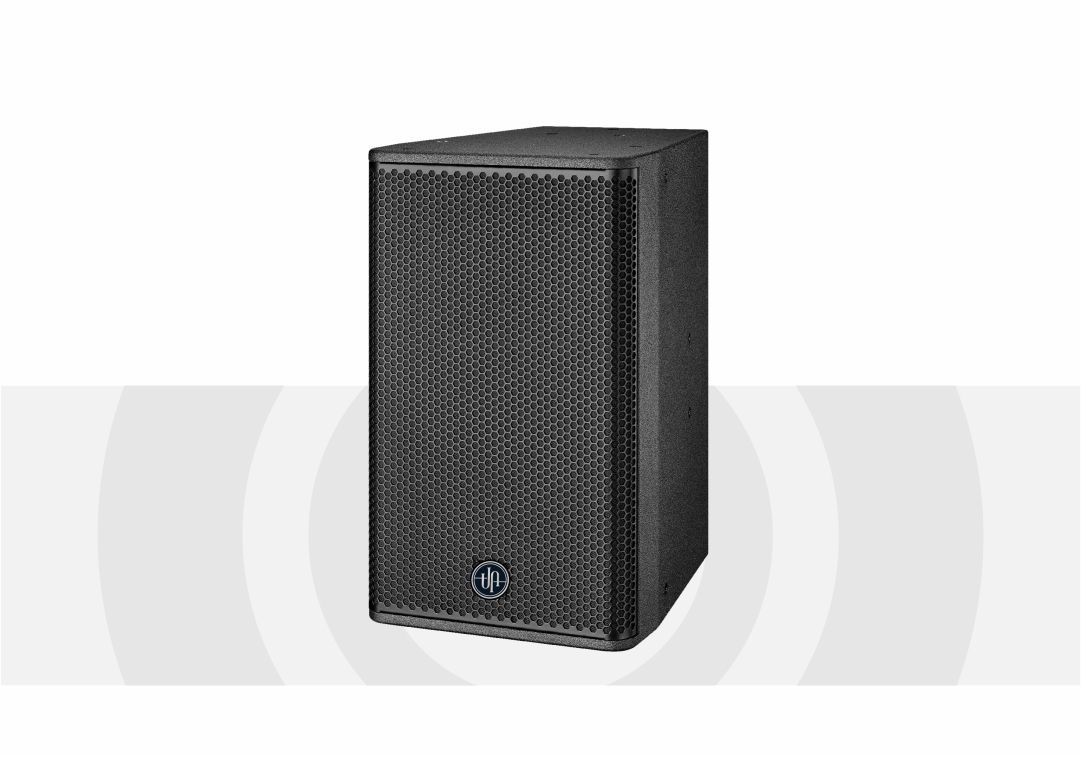

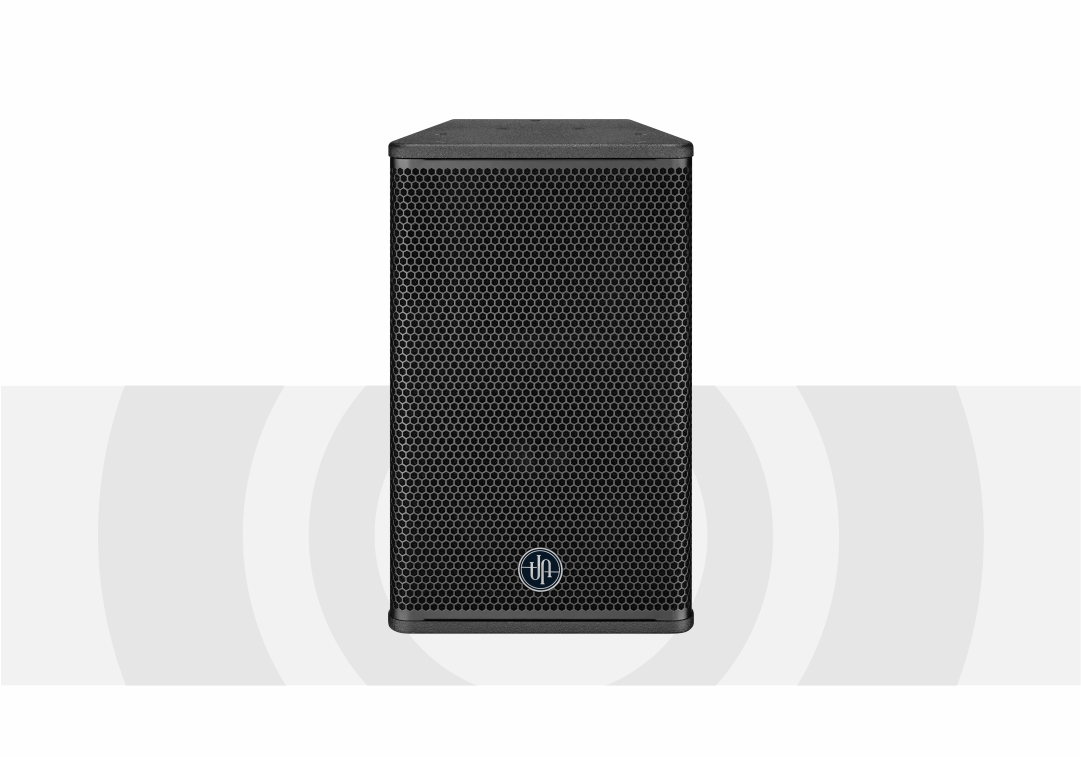

◆ Bass:1×12 "190 magnetic 65 core space magnetic, high 44 core horn imported variable long treble,

◆ Frequency range:50HZ-18KHZ,

◆ Sensitivity:98dB,

◆ Maximum sound pressure level:119dB,

◆ Rated power:400W,

◆ Covering Angle:100° x 85° can be rotated.

◆ Weight:19.5kg,

◆ Material: birch, polyurea paint finish.

◆ SNR: >103dB

◆ Frequency response: 20Hz-20KHz(±0.1dB)

◆ Separation degree: >103dB

◆ Input sensitivity: 0.775V/1V/1.44V

◆ Input impedance: 10K ohms(unbalanced) -20K ohms(balanced) Power amplifier Type: Class-H

◆ Protection mode: soft start, over current protection, DC protection, short circuit protection, limiting ◆ protection, high frequency protection

◆ Panel indicator: Power/Signal/Clipping/Protection/Bridge

◆ Power supply: AC220V,50/60z

◆ Power consumption: 2400W

◆ Net weight: 18.5kg

◆ Size: (D)450mm*(W)483mm*(H)88mm

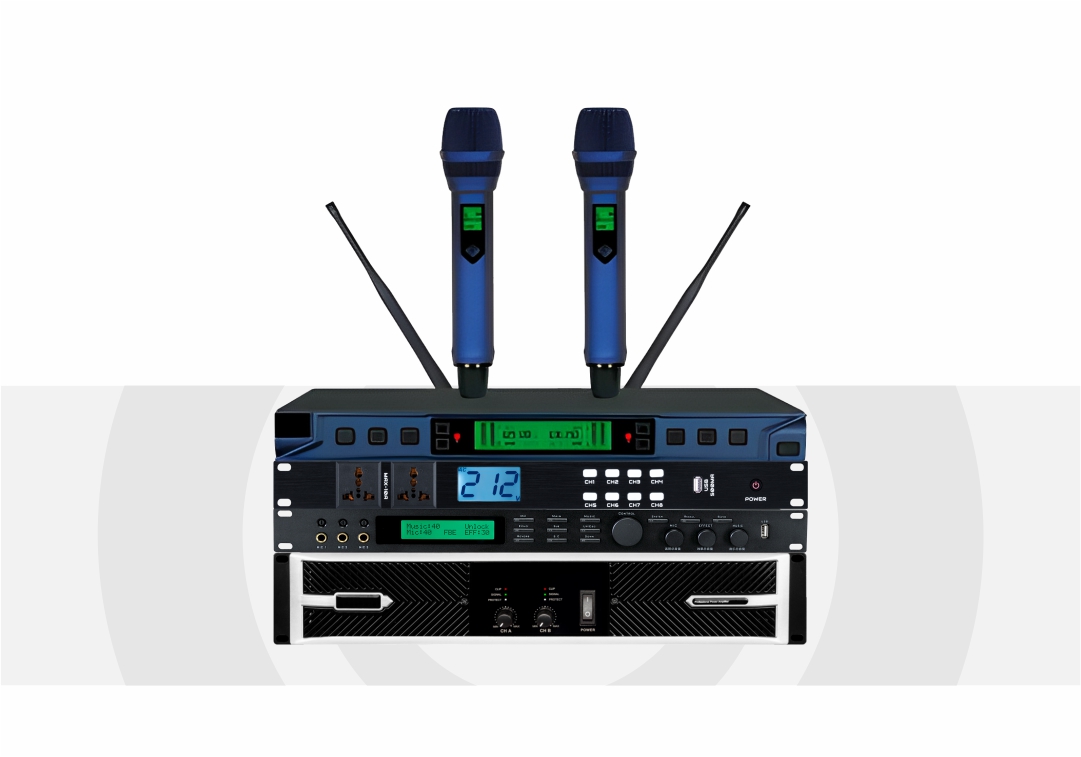

◆ Karaoke effect machine with speaker processor function, each part of the function can be adjusted independently.

◆ Adopt 2Bit data bus and 32Bit DSP.

◆ Music with 7 paragraphs parametric balance. Music to main output high-pass filter: 12dB/24dB(0Hz-303Hz)

◆ The microphone is equipped with 15 parameters balance. Mike air pressure limit function.

◆ The main output has 5 parameter equalization. There is a compression limiter.

◆ Middle output, rear output and ultra-low are equipped with 3-stage parametric balance.

◆ The microphone has 4 feedback suppression modes: OFF 1, 2, 3.

◆ Can store 16 modes.

◆ Microphone output, main output, middle output, subwoofer output, rear output are equipped with pressure limit and delay function.

◆ There are manager mode and user mode, user mode can not be stored after adjusting parameters.

Take-up technical parameters

◆ Operating frequency: 640-690MHz

◆ Infrared frequency, frequency of the same frequency technology

◆ The display displays the transmitter battery level

◆ S/N signal to noise ratio: >105dB

◆ T.H.D distortion :<0.5%

◆ Frequency response :40Hz-18KHz

◆ Noise lock Silencing Control + Audio Navigation lock silencing

◆ Long distance line design, the use of wide places up to 200 meters

Transmitter technical parameters

◆ Channel: Channel 200

◆ Band width :50MHz

◆ Channel interval :250KHz

◆ Frequency stability :±0.005%

◆ RS232 control

◆ Large screen voltage display

◆ Working voltage: 100-260V

◆ Maximum total power: 5000W

◆ Maximum power of a single channel: 2500W

◆ Product size: 480X190X44MM

◆ Weight: 2.6KG

◆ Packing weight: 3KG
