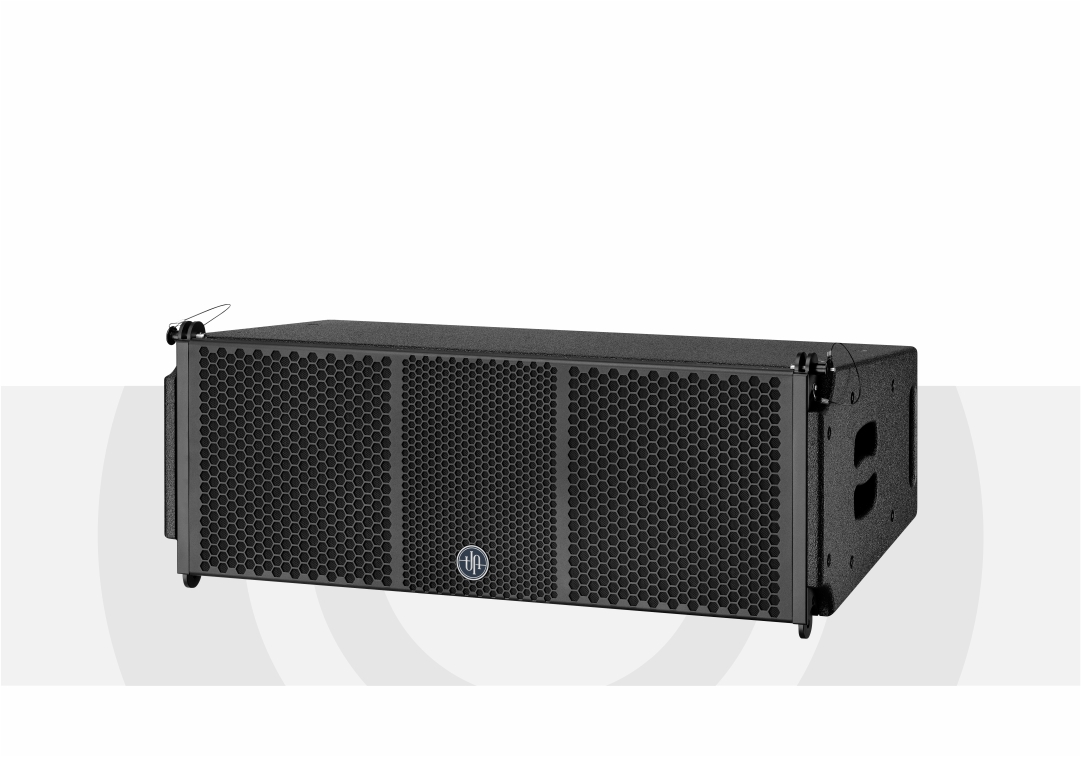

◆Type: Two divided-frequency dual 8-inch speaker

◆Driver: 2 x 8" low frequency driver 1x 3" high frequency driver

◆Nominal Impedance: 8Ω

◆Power Handling : 500W

◆Frequency Range (+/-3 dB): 65Hz - 20kHz

◆Dispersion(-6 dB): H x V 90° x 10°

◆Sensitivity : 101dB

◆Maximum SPL: 128dB/ Peak value 134dB

◆Connection: 2x Speakon NL4

◆Speaker size (WxDxH): 772X474X288MM

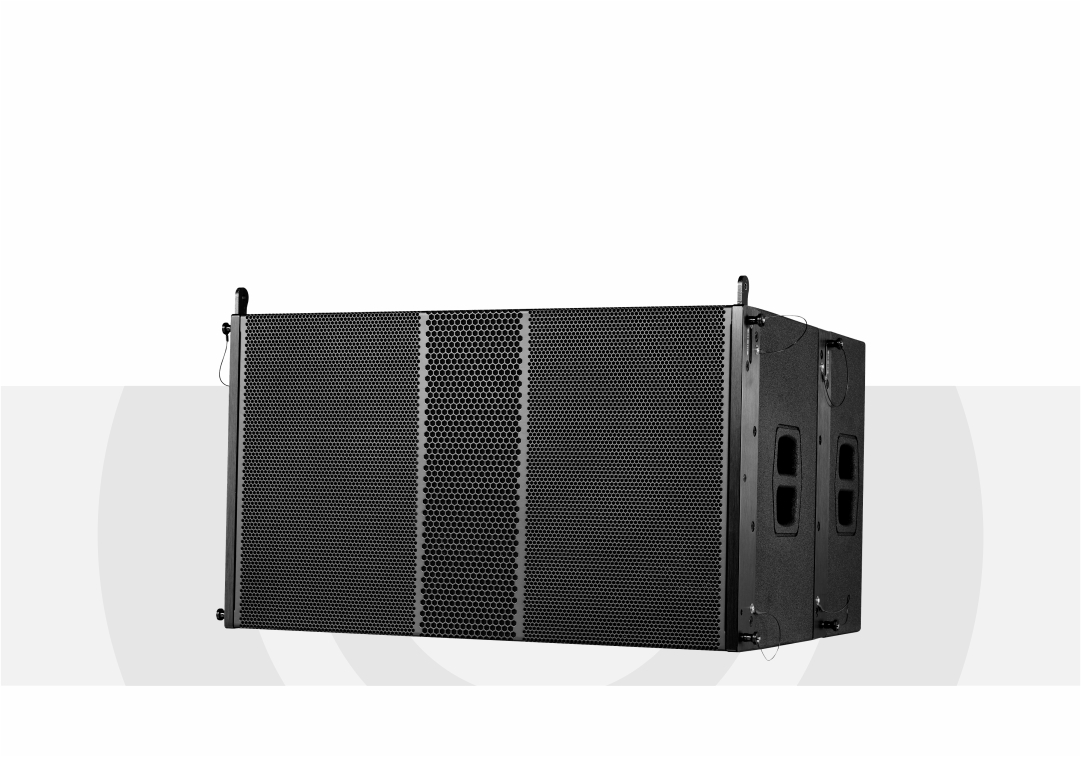

◆ Frequency Range (+/-3 dB):40Hz - 1000Hz

◆ Sensitivity: 99dB

◆ Maximum SPL:129dB

◆ Driver：LF1x 18"

◆ Nominal Impedance: 8Ω

◆ Power Handling: 600W

◆ Connection:2x Speakon NL4

◆ Product dimensions:(WxDxH)851x645x581mm

◆ N.W : 50KG

◆ Impedance: 8Ω

◆ Frequency response: 65Hz-18.5KHz

◆ Sensitivity: 102dB/W/m

◆ Average power: 400W

◆ Frontal power: 1600W

◆ Size: mm(width 460 depth 300 height 460)

◆ Maximum sound pressure level :132dB

◆ Weight: 17kg

◆ Gross weight :19kg

◆ Stereo power: 8Ω850W*2,THD:0.05%1/8

◆ Power 1KHz,4Ω1275W*2, 8ω

◆ Bridge power :2550W

◆ SNR: 105dB

◆ Frequency response: 20Hz-20KHz(±0.3dB)

◆ Input sensitivity: 0.775V

◆ Input impedance: 10K ohms-20K ohms

◆ The panel light: Signal, dctive, clip/limiting

◆ Power supply: 220V,50/60z

◆ Maximum power consumption: 3500W

◆ Net weight: 18.5kg

◆ Size: (D)450mm*(W)483mm*(H)88mm

◆ Stereo power: 8Ω1000W*2,THD:0.01%1/8

◆ Power 1KHz,4Ω1800W*2

◆ Bridge power :3600W

◆ SNR: 108dB

◆ Frequency response: 20Hz-20KHz(±0.3dB)

◆ Input sensitivity: 0.775V/1V/1.55V

◆ Input impedance: 10K ohms-20K ohms

◆ The panel light: Signal, dctive, clip/limiting

◆ Power supply: 220V,50/60z

◆ Maximum power consumption: 5000W

◆ Net weight: 22.5kg

◆ Size: (D)450mm*(W)483mm*(H)88mm

◆ Input microphone or LINE Input 12 inputs (balanced input)

◆ Connector 12 cannon contains 4 C0MB0 cannon

◆ Input impedance 3kQ

◆ Frequency response 20Hz-20kHz(+/-0.5dB)

◆ Max input level +15dBu(balanced input)

◆ Total harmonic distortion <0.01%@1KdBu

◆ Phantom Power +48V(CH-1 to CH-12)

◆ S/N signal-to-noise ratio -108 dba weighted

◆ Phase standard/inverting

◆ Product size (DxWxH)350x420x110mm

◆ Net weight: 4.8kg

◆ Gross weight: 7.0kg

◆ Input interface - Output interface Input can be assigned to any output

◆ The slope is 12 dB/Oct, 18 dB/Oct, 24 dB

◆ Independent input/output indication

◆ Maximum level: +15dBm

◆ Gain: +6dB≈-40dB, step 0.1dB

Parametric equalizer: input 9 segments, output 8 segments

◆ Frequency response: 20Hz-22kHz, +/-0.2dB

◆ Signal-to-noise ratio: 110dB Typical (Unweighted)

◆ Distortion: < 0.0029%@1K,0dBu

◆ Audio interface: XLR Alcoon interface

◆ Control interface: RS232 DB-9; USB type

◆ Power supply: 100~230V AC, 50/60Hz adaptive;

◆ Dimensions: 483mm x 210mm x 45mm

◆ Weight :3.3kg

◆ Input power supply three-phase five-wire, AC 380 50Hz

◆ Power switch and overcurrent protection 32A 3P air switch with overcurrent and short circuit protection

◆ Number of channels The front panel has 1 direct channel

◆ Rear panel 14 way controllable (upper and lower two sockets for a group, a total of 7 groups, each channel ◆ control 1 group at the same time switch)

◆ The delay time of each action is 1 second

◆ Maximum output current of a single input The total current of the devices connected to the upper and ◆ lower sockets of a group is limited to 30A for 60 seconds or 16Arms

◆ Maximum input current 80A

◆ With power filters None, 7 16A special filters

◆ Package Size 557*462*145 mm (mm)

Take-up technical parameters

◆ Operating frequency: 640-690MHz

◆ Infrared frequency, frequency of the same frequency technology

◆ The display displays the transmitter battery level

◆ S/N signal to noise ratio: >105dB

◆ T.H.D distortion :<0.5%

◆ Frequency response :40Hz-18KHz

◆ Noise lock Silencing Control + Audio Navigation lock silencing

◆ Long distance line design, the use of wide places up to 200 meters

Transmitter technical parameters

◆ Channel: Channel 200

◆ Band width :50MHz

◆ Channel interval :250KHz

◆ Frequency stability :±0.005%

◆ Battery :2 AA batteries/No. 5 batteries

◆ Transmit power:

◆ Factory set to low power 150m,

◆ Manually set high power up to 200 meters

◆Operating frequency range :490-960MHz;

◆Power supply mode: BNC,5-10VDC;

◆Antenna type: logarithmic cycle;

◆Input impedance: 50 ohms;

◆Gain: 12dB;

◆Directivity: horizontal 90°;

◆Connector type: BNC;
