NO.

Description

Model

Argument

1

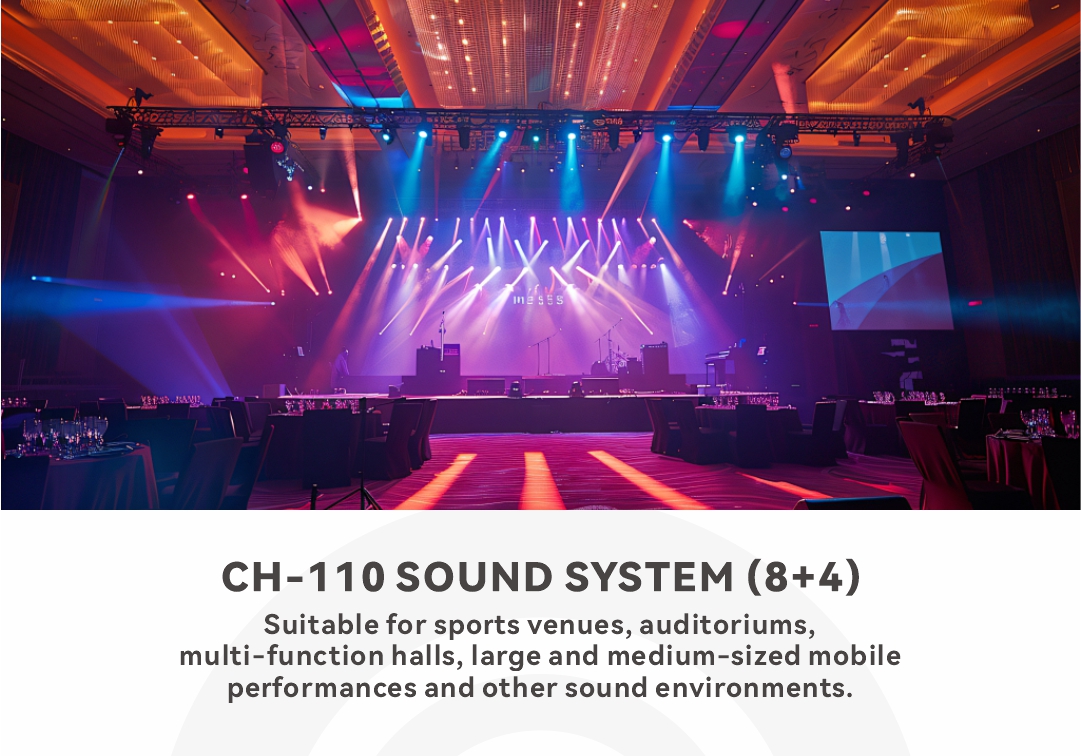

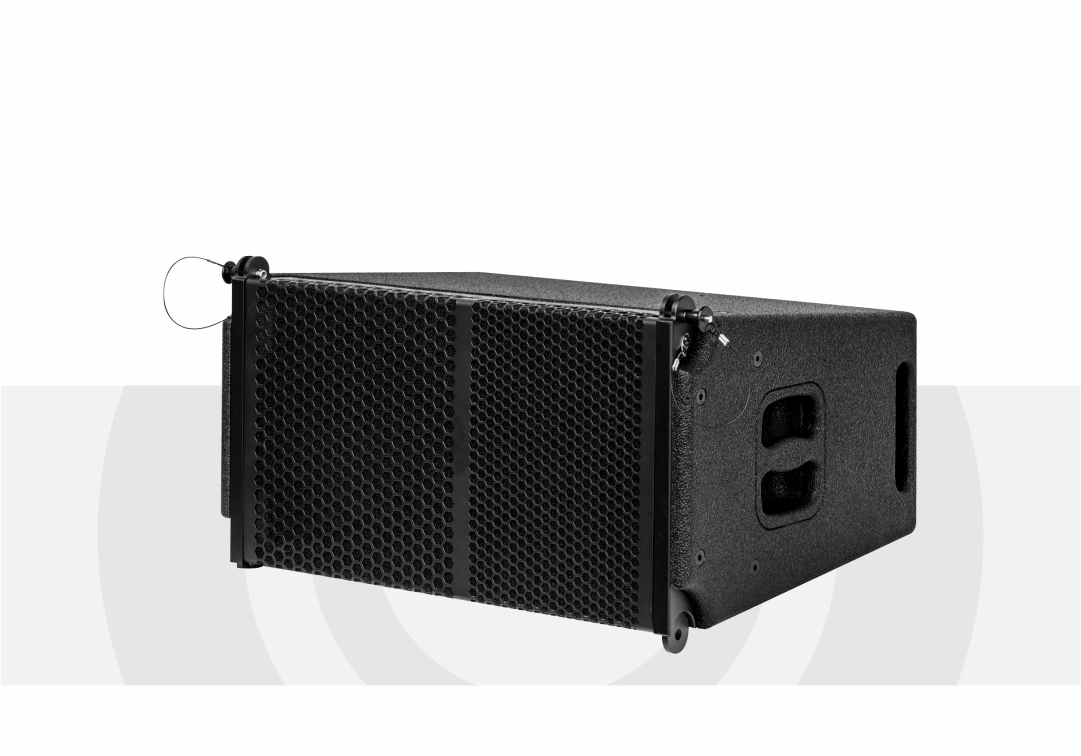

Single 10 "linear speaker

CH-110

◆ Driver: 1x 10" low frequency driver 1x 3" high frequency driver

◆ Nominal Impedance :8Ω

◆ Rated Power Handling: 400W

◆ Sensitivity: 105dB

◆ Maximum SPL:132dB

◆ 2x Speakon NL4

◆ Speaker size (WxDxH) : 580x474x335mm

◆ Net weight N.W:24KG

2

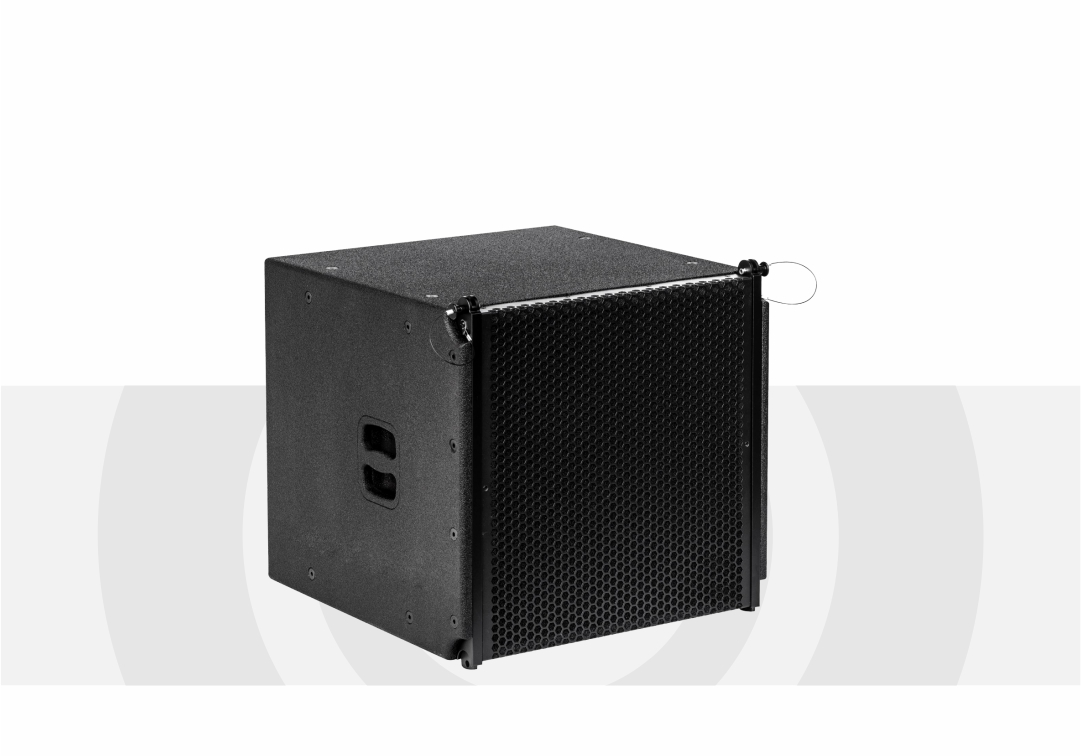

18 "subwoofer

CH-118B

◆ Product Parameters:

◆ Unit Composition Driver: 1x 18"

◆ Nominal Impedance: 8Ω

◆ Rated Power Handling: 600W

◆ Frequency response Frequency Range: 40Hz-1000Hz

◆ Sensitivity: 99dB

◆ Maximum SPL:

◆ 127dB/peak133dB

◆ Connection:2x Speakon NL4

◆ Product dimensions:(WxDxH)600x645x581mm

◆ Net weight N.W: 43KG

3

12 "back to listen

NM-12M

◆ Impedance: 8Ω

◆ Frequency response: 65Hz-18.5KHz

◆ Sensitivity: 102dB/W/m

◆ Average power: 400W

◆ Frontal power: 1600W

◆ Size: mm(width 460 depth 300 height 460)

◆ Maximum sound pressure level :132dB

◆ Net weight: 17kg

◆ Gross weight :19kg

4

Creel

A-110

Customized supporting hanger, with long and short connecting rod, 4 U buckle, 2 bandages

5

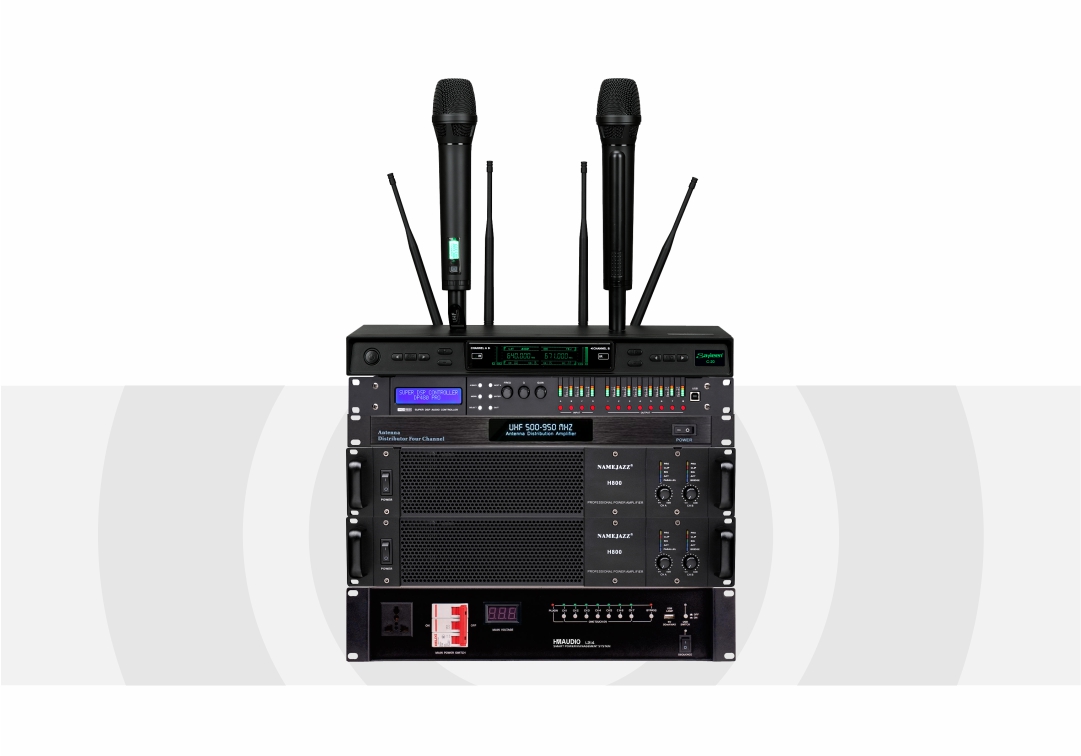

Linear array full frequency power amplifier

H800

◆ Stereo power: 8Ω850W*2,THD:0.05%1/8

◆ Power: 1KHz,4Ω1275W*2, 8ω

◆ Bridge power :2550W

◆ SNR: 105dB

◆ Frequency response: 20Hz-20KHz(±0.3dB)

◆ Input impedance: 10K ohms-20K ohms

◆ The panel light: Signal, dctive, clip/limiting

◆ Power supply: 220V,50/60z

◆ Maximum power consumption: 3500W

◆ Net weight: 18.5kg

◆ Size: (D)450mm*(W)483mm*(H)88mm

6

Listen back amplifier

H800

◆ Stereo power: 8Ω850W*2,THD:0.05%1/8

◆ Power: 1KHz,4Ω1275W*2, 8ω

◆ Bridge power :2550W

◆ SNR: 105dB

◆ Frequency response: 20Hz-20KHz(±0.3dB)

◆ Input impedance: 10K ohms-20K ohms

◆ The panel light: Signal, dctive, clip/limiting

◆ Power supply: 220V,50/60z

◆ Maximum power consumption: 3500W

◆ Net weight: 18.5kg

◆ Size: (D)450mm*(W)483mm*(H)88mm

7

Bass power amplifier

H1000

◆ Stereo power: 8Ω1000W*2,THD:0.01%1/8

◆ Power 1KHz,4Ω1800W*2

◆ Bridge power :3600W

◆ SNR: 108dB

◆ Frequency response: 20Hz-20KHz(±0.3dB)

◆ The panel light: Signal, dctive, clip/limiting

◆ Power supply: 220V,50/60z

◆ Maximum power consumption: 5000W

◆ Net weight: 22.5kg Size: (D)450mm*(W)483mm*(H)88mm

8

Digital mixing console

MX16

◆ 32 input channels, 16 AUX outputs, 6 marshalling

◆ 192kHz digital-to-analog/analog-to-digital conversion provides excellent audio performance

◆ The shape of the mixer is designed by Bentley Automotive designers

◆ Made of high-performance carbon fiber and high-strength aluminum alloy

◆ 8 stereo effects and up to 50 different effects types

◆ 1 stereo AES/EBU output

◆ 1 Input and output to MIDI

· 36 user-defined keys

◆ 25 100mm MIDAS PRO electric faders

◆ 7 "TFT color" Daylight "display

◆ Support for Behringer's personal monitoring system P16

◆ Support for U disk recording and playback in FAT32 format (up to 2 tracks at 44.1kHz sampling rate)

◆ Support DAW post-production routing control

◆ Built-in RTA function

◆ Support 32x32 channels of digital audio transmission via USB 2.0

◆ Control digital audio workstations by using Mackie Control and Hui protocols control protocols

◆ It can be controlled wirelessly by the MIDAS Apps app in IPhone/IPad

◆ Size: 891*607*256MM 24.5KG

9

4 in and 8 out audio processors

DX4008

Product features:

◆ DX series is a full digital audio processor, the appearance is simple and generous;

◆ USB, RS232 interface, network port and WIFI can be connected to the computer; Through PC control software to control, are very convenient and simple;

◆ Each input and output are equipped with 8 independent parameter equalization, adjustable gain range up to ±20dB; At the same time, the output channel balance can also choose Lo-shelf, Hi-shelf two skew wave mode;

◆ Mode each way has delay, polarity and mute Settings, delay up to 1000ms;

◆ Output channel, can also control the gain, voltage limit and input channel signal selection function;

◆ Variable high/low pass filter, and the response can be selected as Bessel, Butterworth 12dB,18dB,24dB or Linkwitz-Riley 12dB,18dB,24dB,48dB;

◆ Can store 12 groups of user programs.

10

Smart power manager

DF14

◆ Model L214 L214A

◆ Input power supply three-phase five-wire, AC 380 50Hz

◆ Power switch and overcurrent protection 32A 3P air switch with overcurrent and short circuit protection

◆ Number of channels The front panel has 1 direct channel

◆ Rear panel 14 way controllable (upper and lower two sockets for a group, a total of 7 groups, each channel control 1 group at the same time switch)

◆ Maximum output current of a single input The total current of the devices connected to the upper and lower sockets of a group is limited to 30A for 60 seconds or 16Arms

◆ Maximum input current 80A

◆ With power filters None, 7 16A special filters

◆ Package Size 557*462*145 mm (mm)

11

True diversity microphone

V10

◆ ake-up technical parameters

◆ Operating frequency: 640-690MHz

◆ Infrared frequency, frequency of the same frequency technology

◆ The display displays the transmitter battery level

◆ S/N signal to noise ratio: >105dB

◆ T.H.D distortion :<0.5%

◆ Frequency response :40Hz-18KHz

◆ Noise lock Silencing Control + Audio Navigation lock silencing

◆ Long distance line design, the use of wide places up to 200 meters

◆ Transmitter technical parameters

◆ Channel: Channel 200

◆ Band width :50MHz

◆ Channel interval :250KHz

◆ Frequency stability :±0.005%

◆ Battery :2 AA batteries/No. 5 batteries

◆ Transmit power:

◆ Factory set to low power 150m,

◆ Manually set high power up to 200 meters

12

Antenna amplifier

TX-870

◆ Technical parameters of eight-way signal amplifier: (standard aviation case)

◆ Frequency range: 500-940MHz

◆ Input cut-off point: +22dBm

◆ Noise ratio: 4.0dB Type(Center Band)

◆ Gain: +6-9dB(Center Band)

◆ Output impedance: 15dB min

◆ Impedance: 50Ω

◆ Bandwidth: 300MHz

◆ Socket: TNC female

◆ Power supply: 100-240V/50/60Hz

◆ Power consumption: 170mA

13

Cabinet

Custom
