H1200 Amplifier

Connection Types:

Suitable for large and small concerts, band performances, sports venues, theaters, bars, multi-function rooms, and other sound environment

Online Consulting

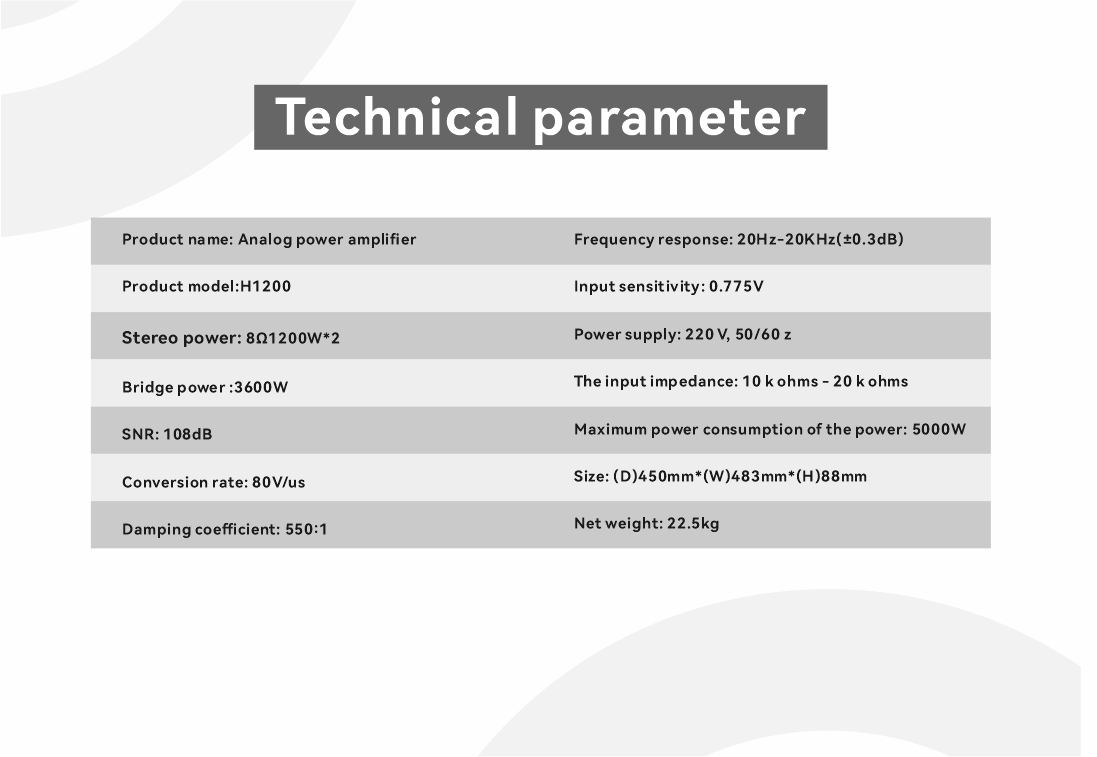

PRODUCT FEATURE

◆ Stereo power: 8Ω1200W*2,THD:0.01%1/8

◆ Power 1KHz,4Ω1800W*2

◆ Bridge power :3600W

◆ SNR: 108dB

◆ Conversion rate: 80V/us

◆ Damping coefficient: 550:1

◆ Frequency response: 20Hz-20KHz(±0.3dB)

◆ Input sensitivity: 0.775V/1V/1.55V

◆ Input impedance: 10K ohms-20K ohms

◆ the panel light: Signal, dctive, clip/limiting

◆ Power supply: 220V,50/60z

◆ Maximum power consumption: 5000W

◆ Net weight: 22.5kg

◆ Size: (D)450mm*(W)483mm*(H)88mm
